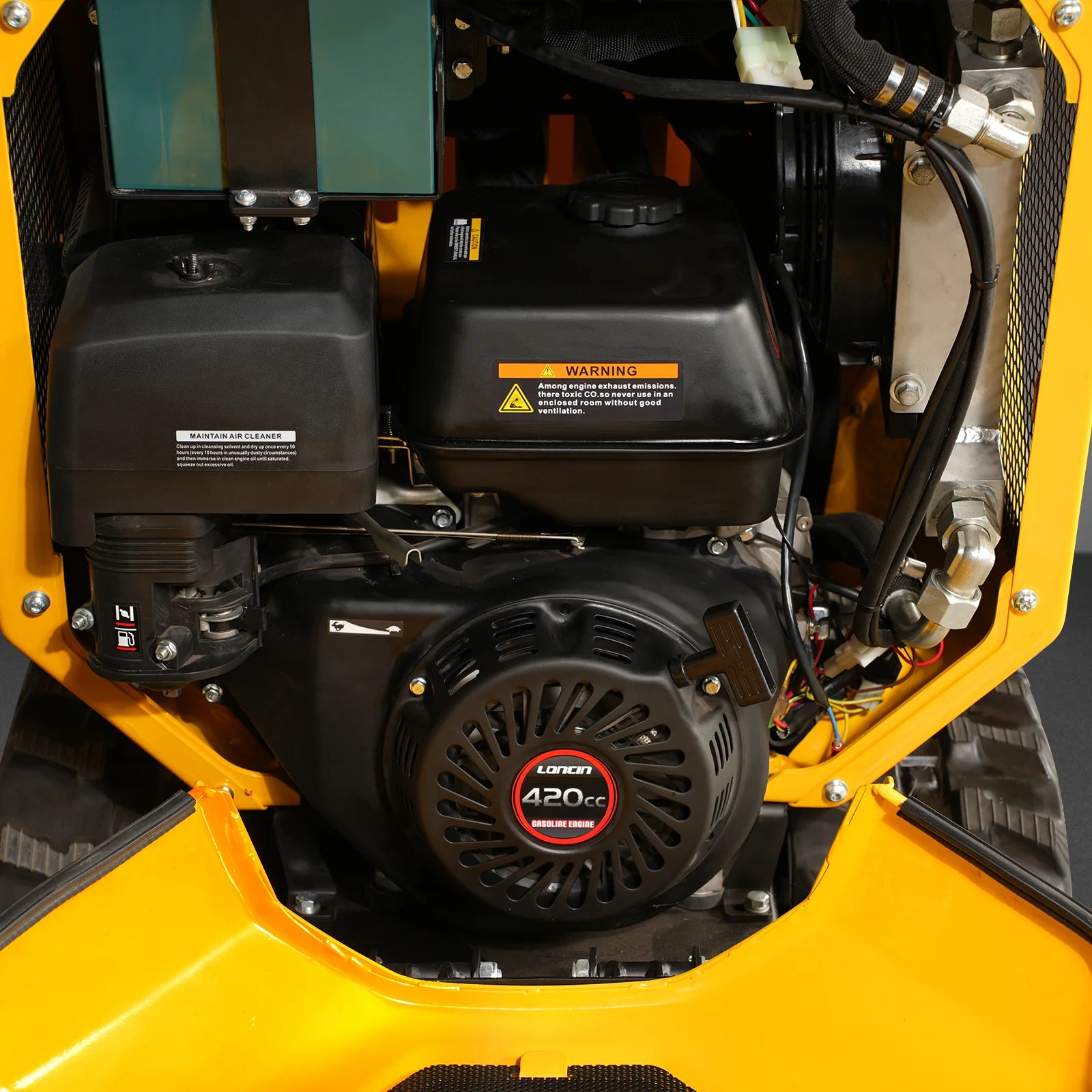

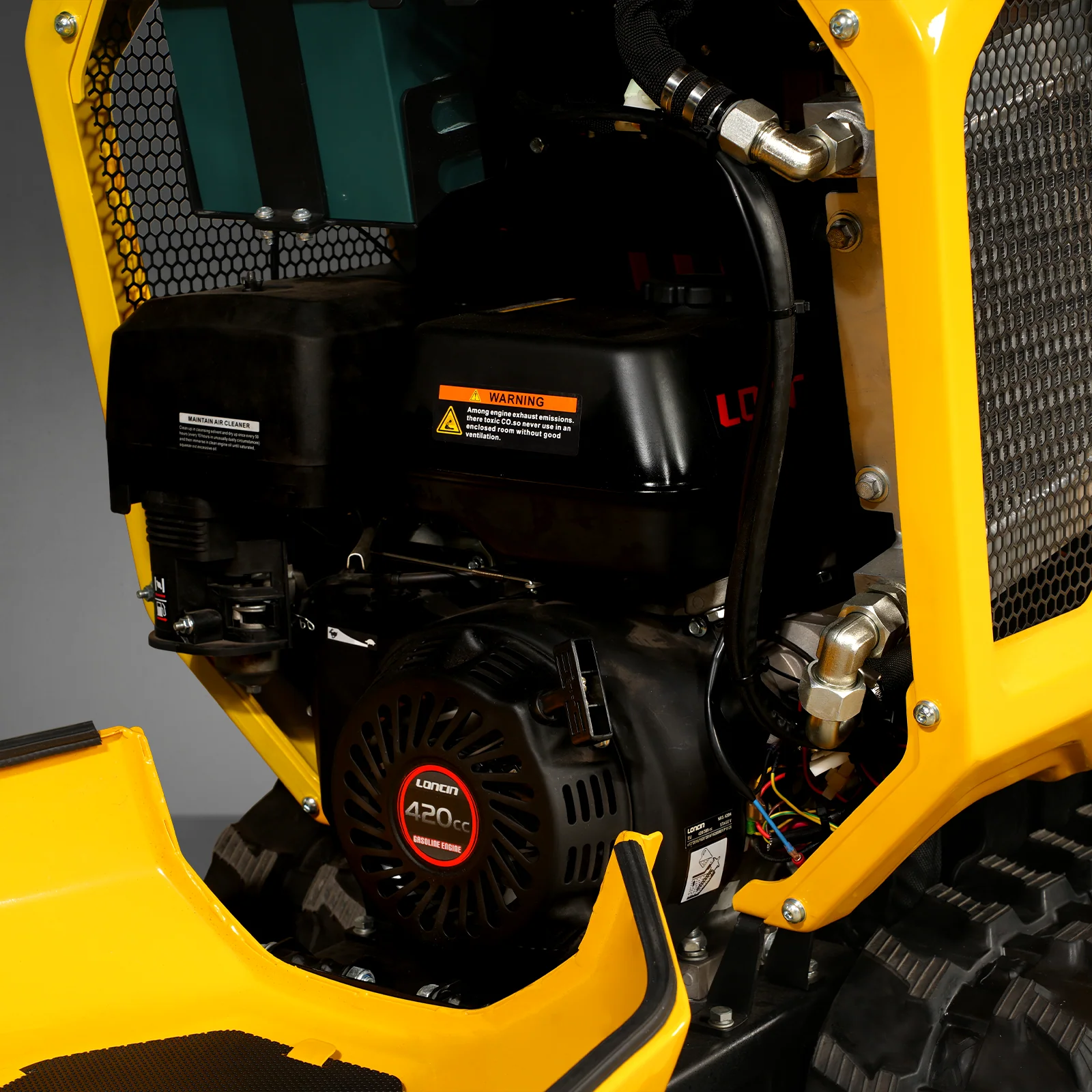

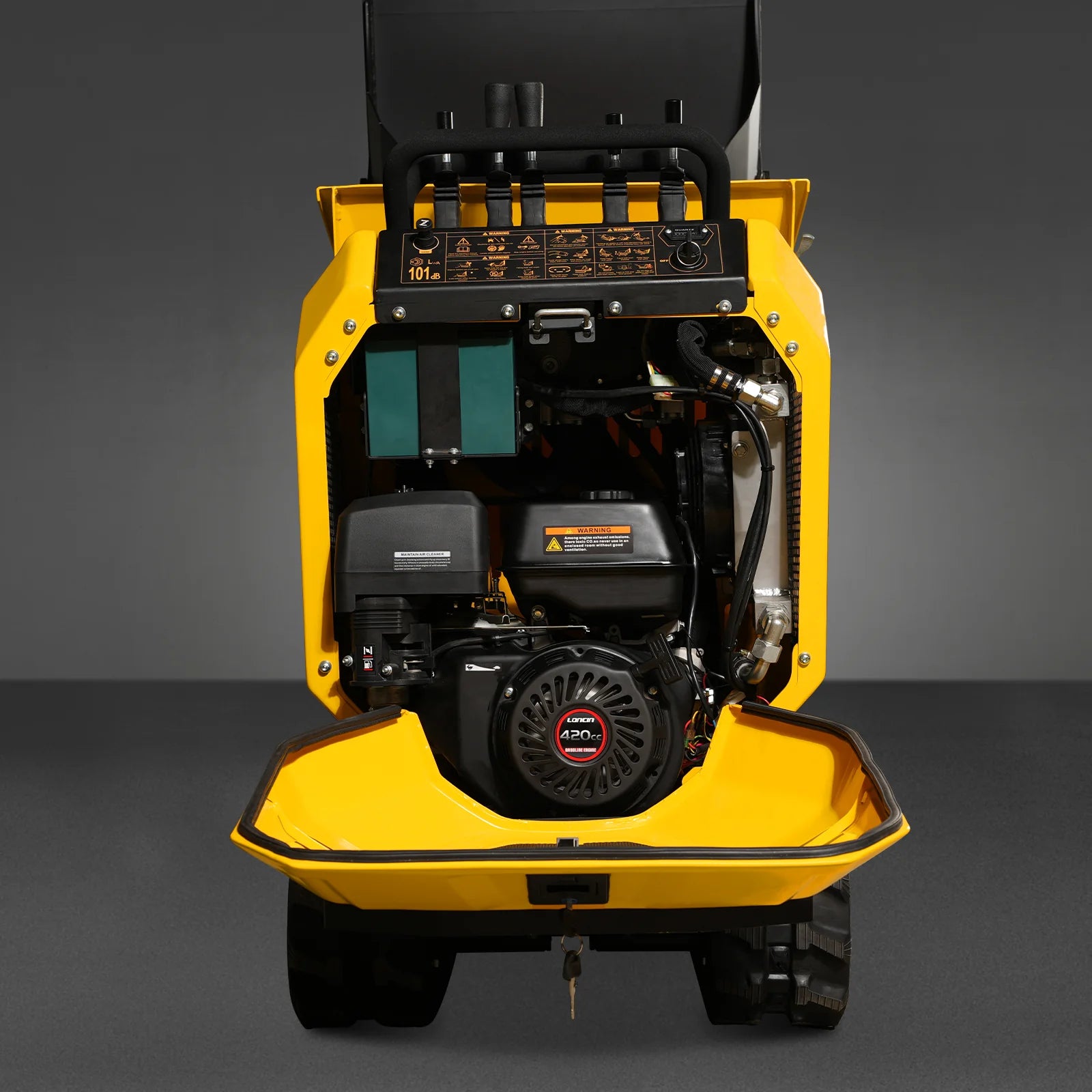

| Engine | LONCIN G420F(D) | Working Type | Self Loading and Unloading |
| Engine Type | Single Cylinder, 4 Stroke, Air Cooled, OHV | Transmission | Hydrostatic Track Drive System |
| Engine Displacement | 420 cc | Parking Brake | Yes |
| Horsepower | 15 HP | Operator Platform | Stand-On |
| Engine Power | 9.0 kw / 3600 RPM | Max.Travel Speed | 0-2.73 mph |
| Start | E-Start | Min. Travel Speed | 0-1.37 mph |
| Maximum Torque | 26.5 N·m / 2500 RPM | Max. Gradeability | 0.3 |
| Loading Capacity | 1800 lbs | Ground Pressure (with Operator) | 2.9 Psi (20 Kpa) |
| Wheelbase | 39 in | Hydraulic Pressure | 2900 Psi (20 Mpa) |
| Bucket Capacity | 10.6 cu.ft. | Hydraulic Tank Capacity | 6 gal |
| Track Width | 7.09 in | Fuel Tank Capacity | 1.72 gal |
| Track Length | 51.2 in | Battery Capacity | 12 V 20 Ah |
| Track Height | 11.8 in | Pump Type | Triple Gear Pump |
| Shovel Height | 63.8 in | Overall Length (W/O Shovel) | 80 in |
| Dump Front End Height | 33.3 in | Overall Length with Shovel | 108 in |
| Dump Back End Height | 43.3 in | Overall Height | 48 in |
| Dump Width | 24.3 in | Overall Width | 29 in |
| Console Height | 40.2 in | Weight (N.W / G.W) | 1253 / 1385 lbs |
| Platform Ground Clearance | 10.4 in |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
