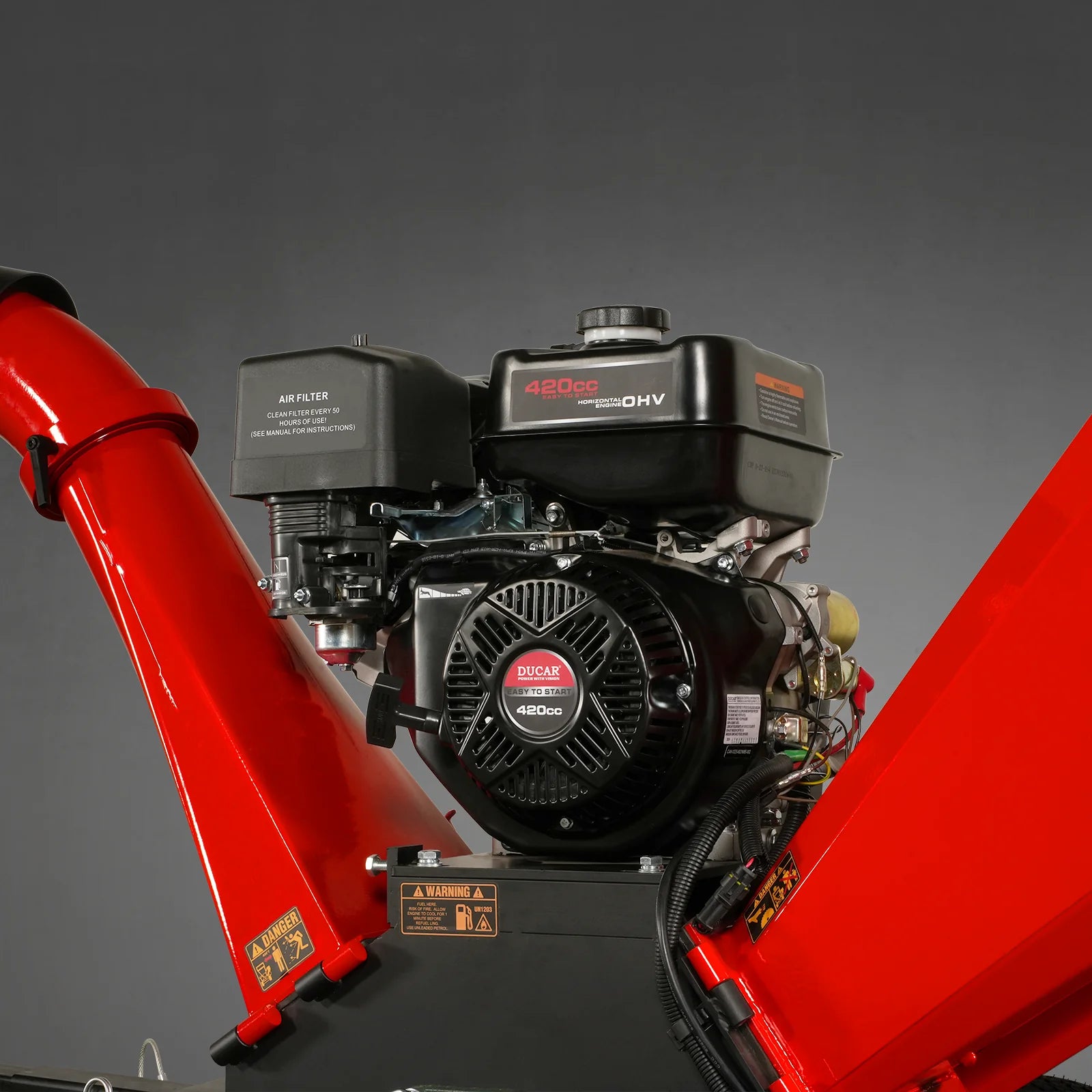

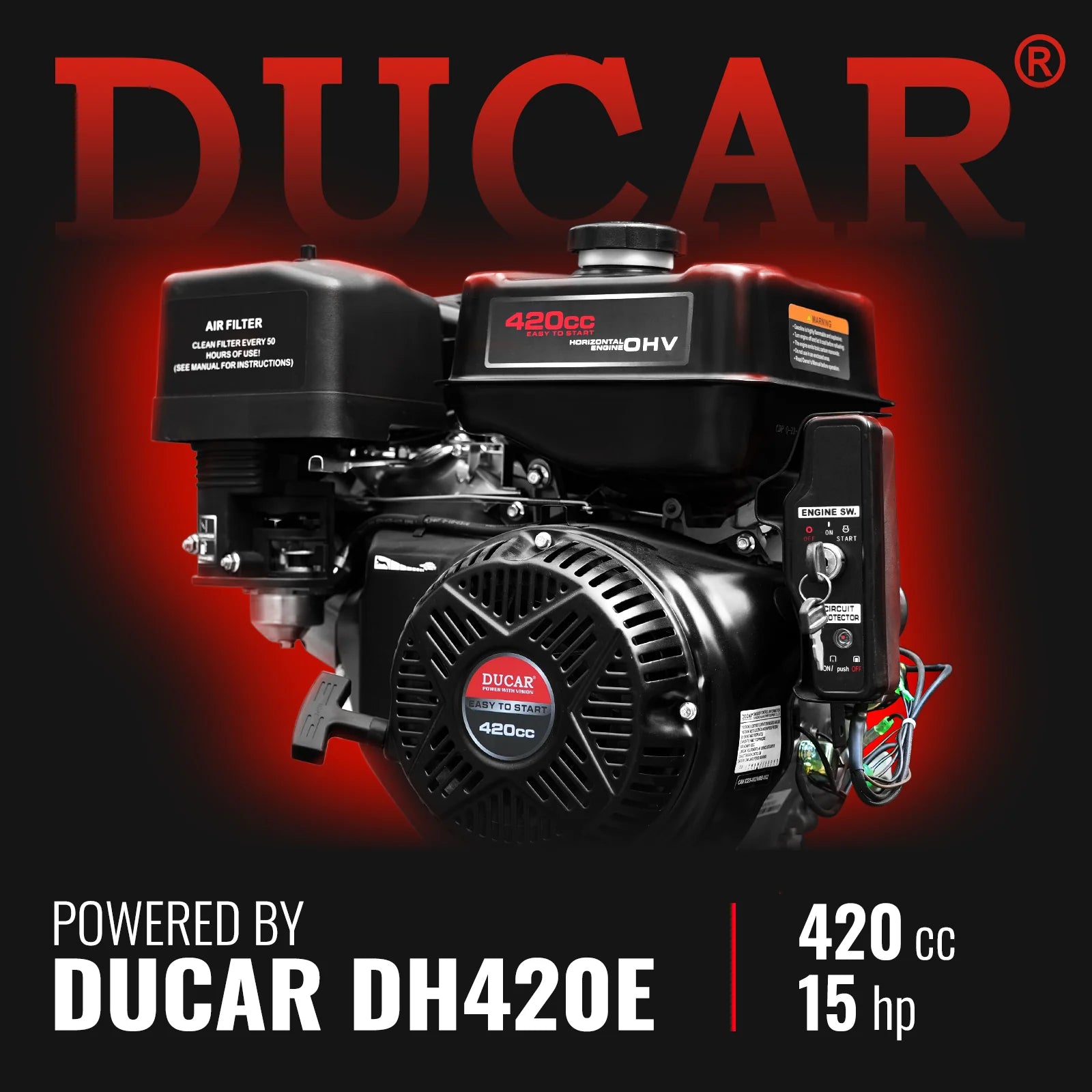

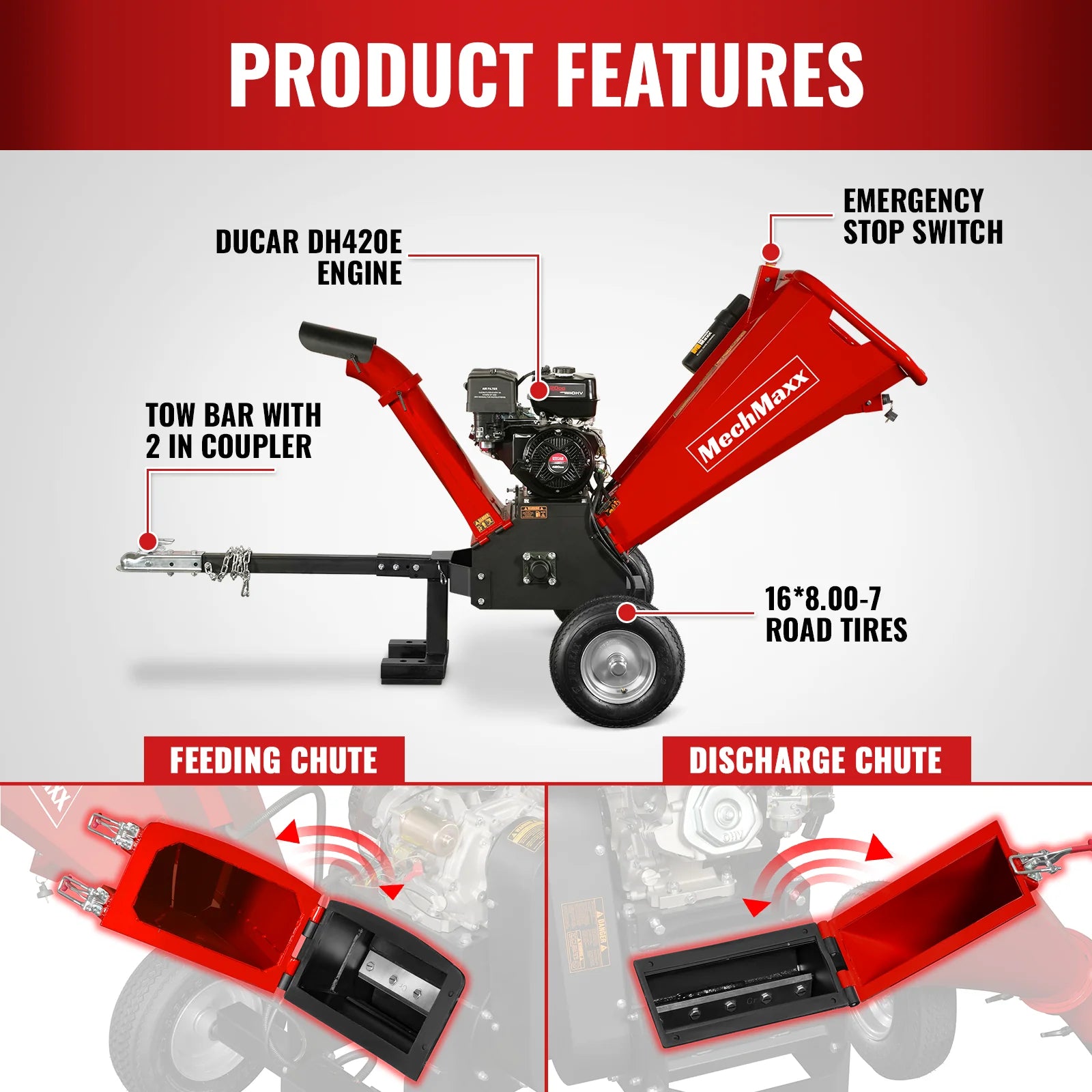

| Engine | DUCAR DH420E | Blades Type | Double Edge Blade |
| Engine Type | Single Cylinder, 4 Stroke, Air-Cooled, OHV | Discharge Chute | 360 Degree Rotating |

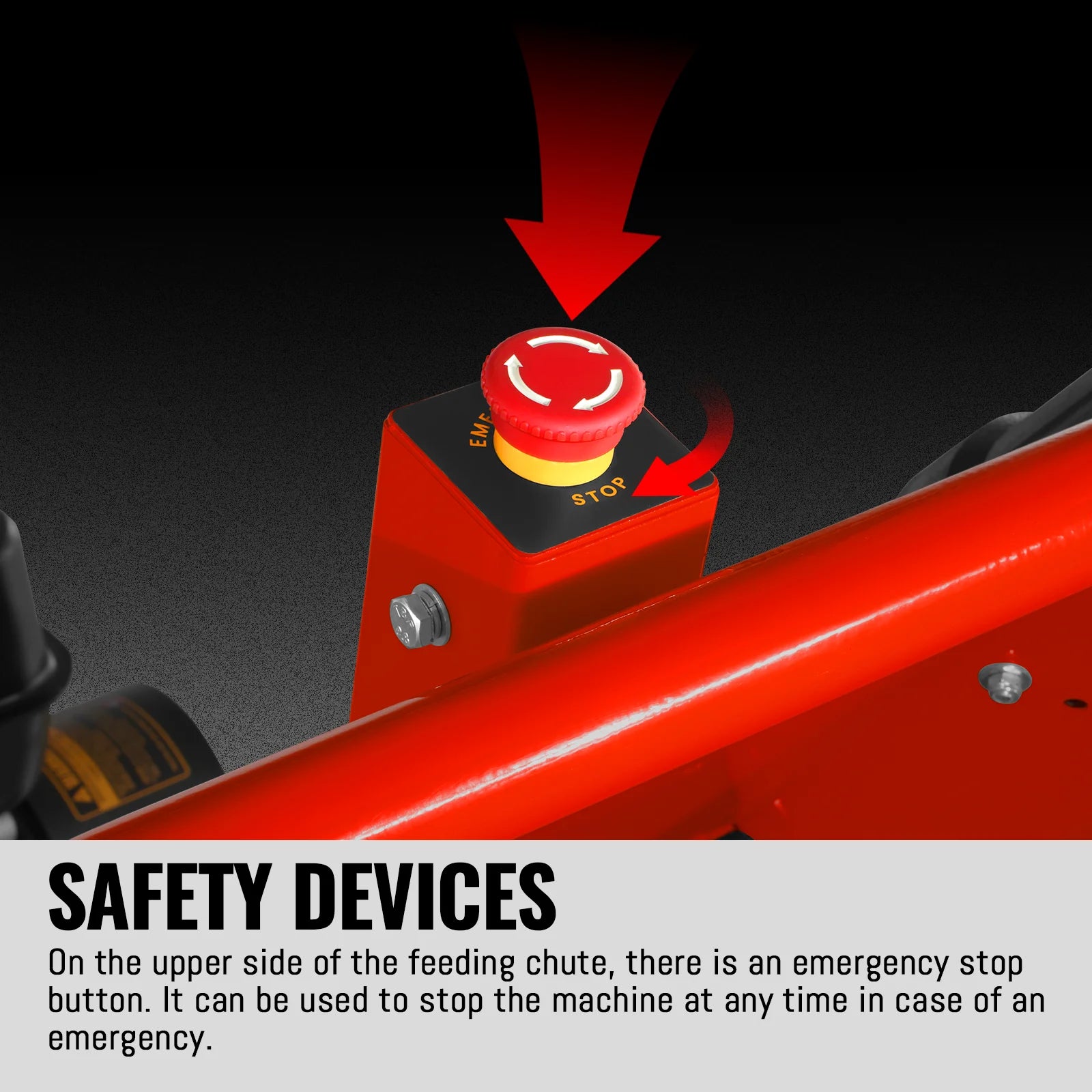

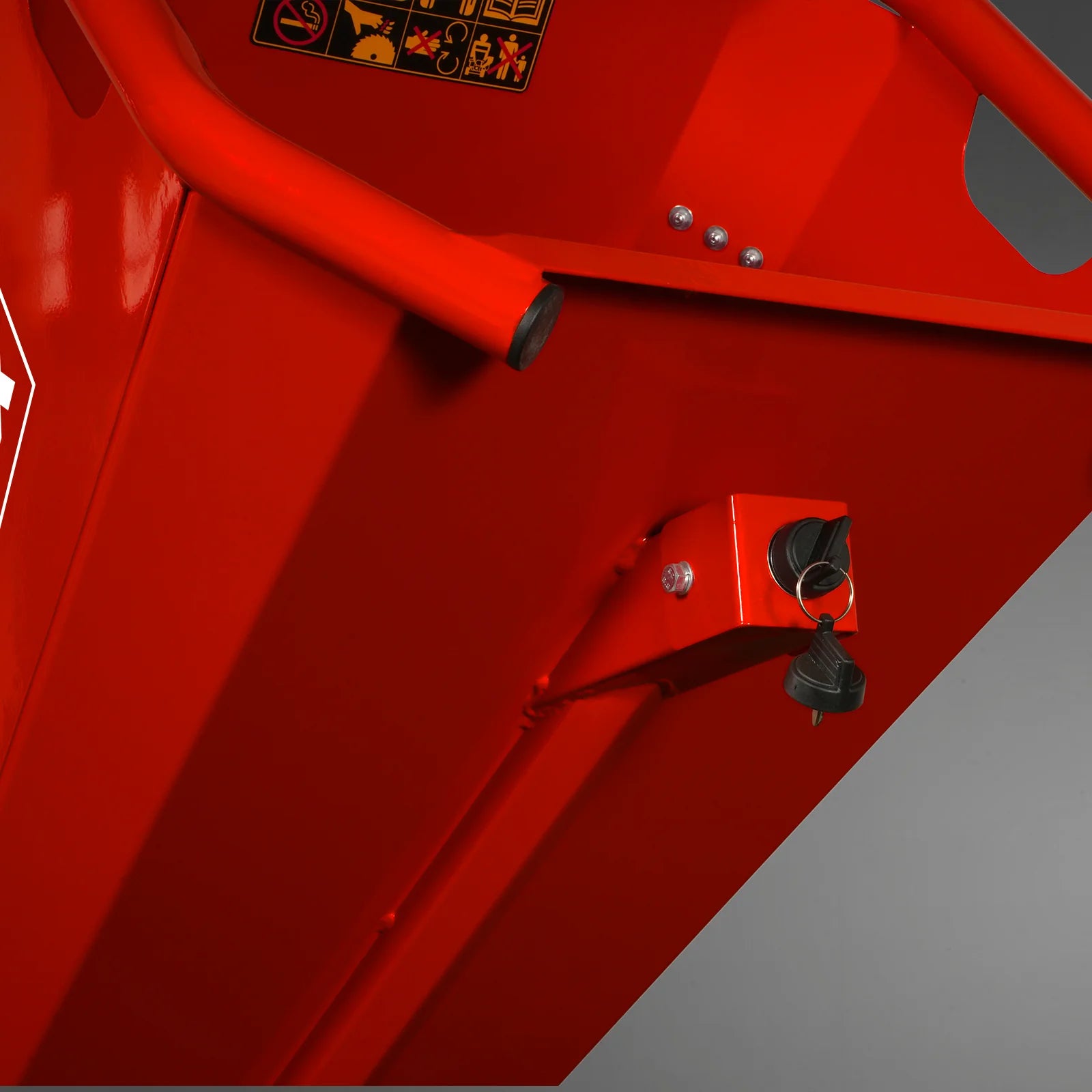

| Displacement | 420 cc; 15 HP | Emergency Stop | Stop Button |
| Start | E-Start | Feed Chute Opening Method | Hinge |
| Battery | 12V 20Ah Lead-Acid | Discharge Chute Opening Method | Hinge |

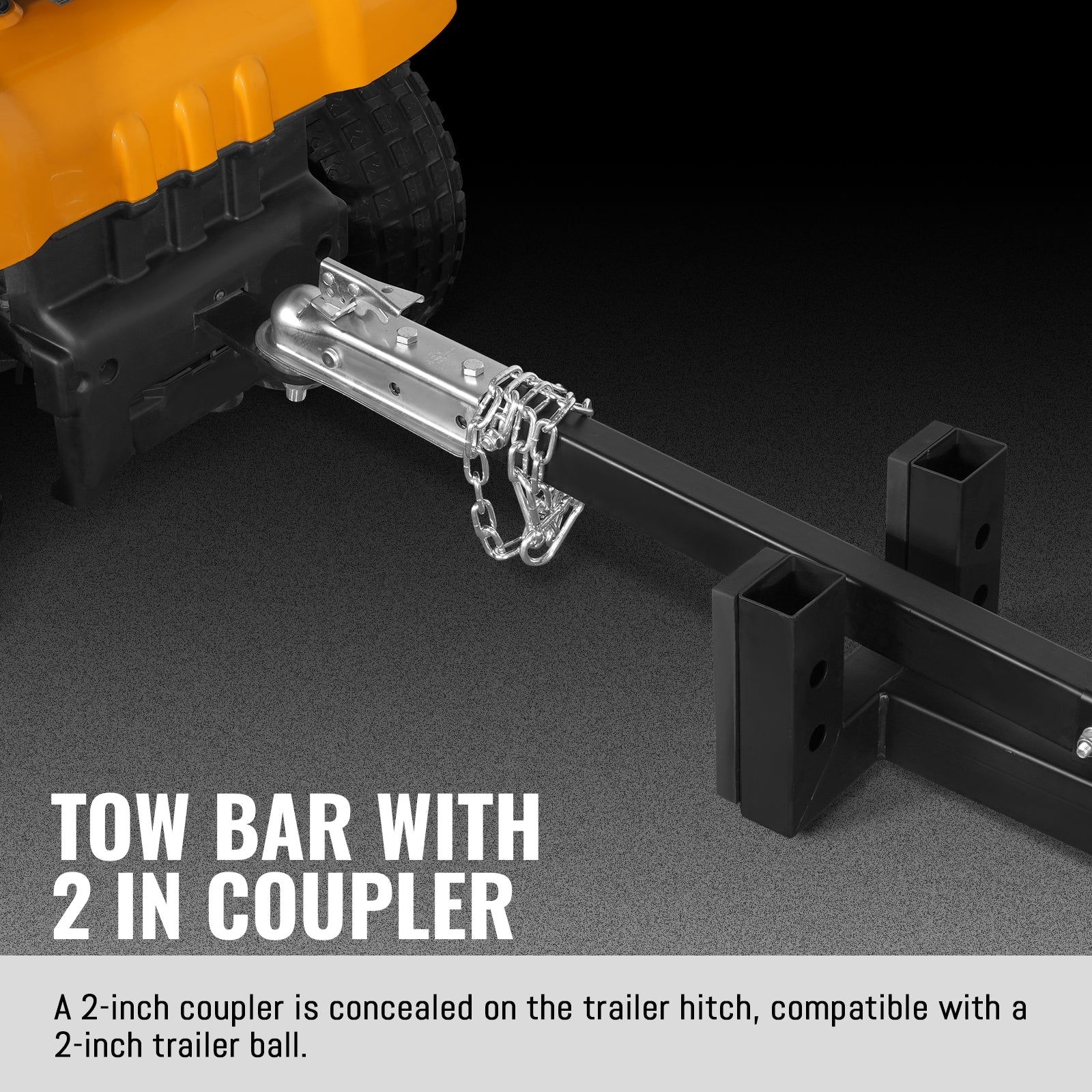

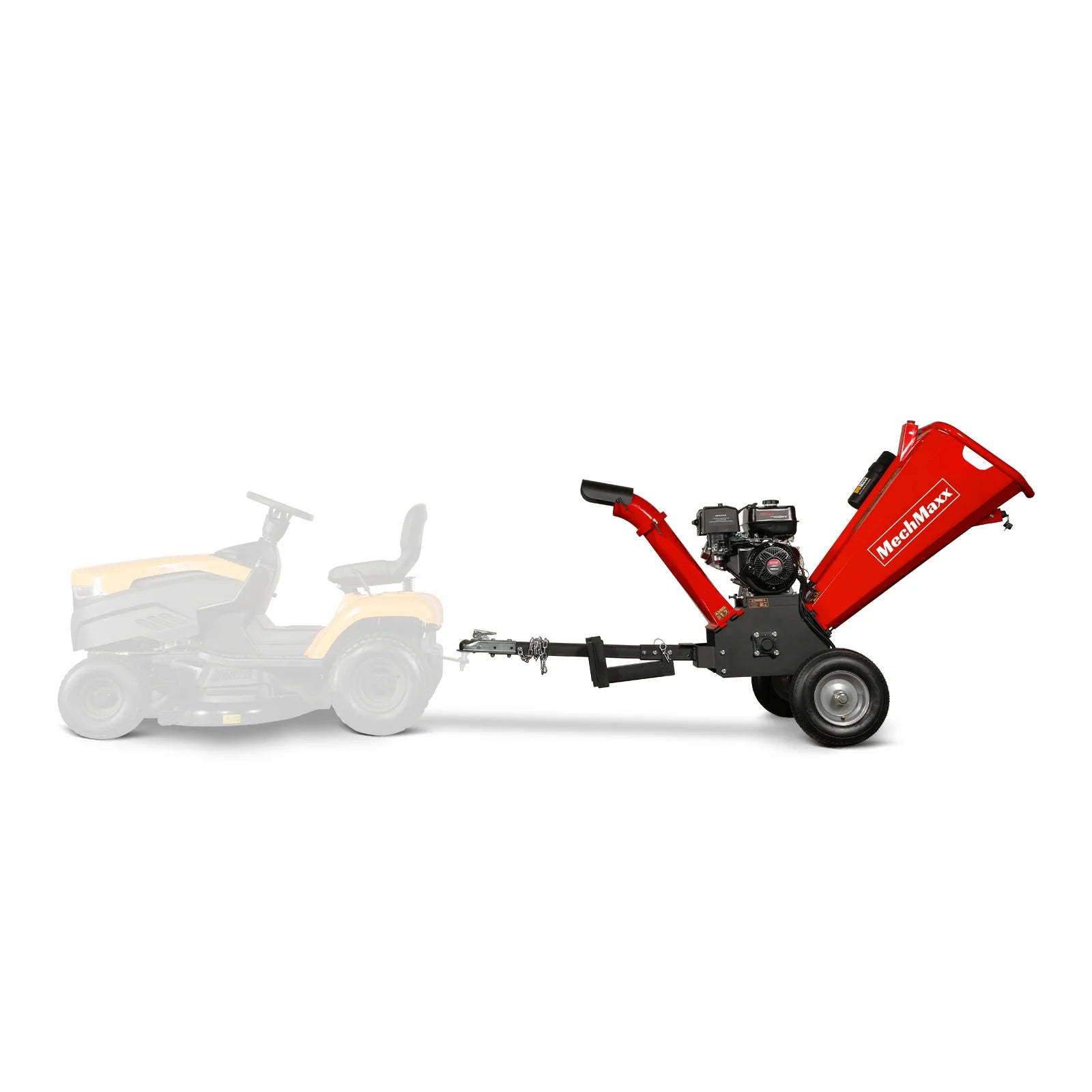

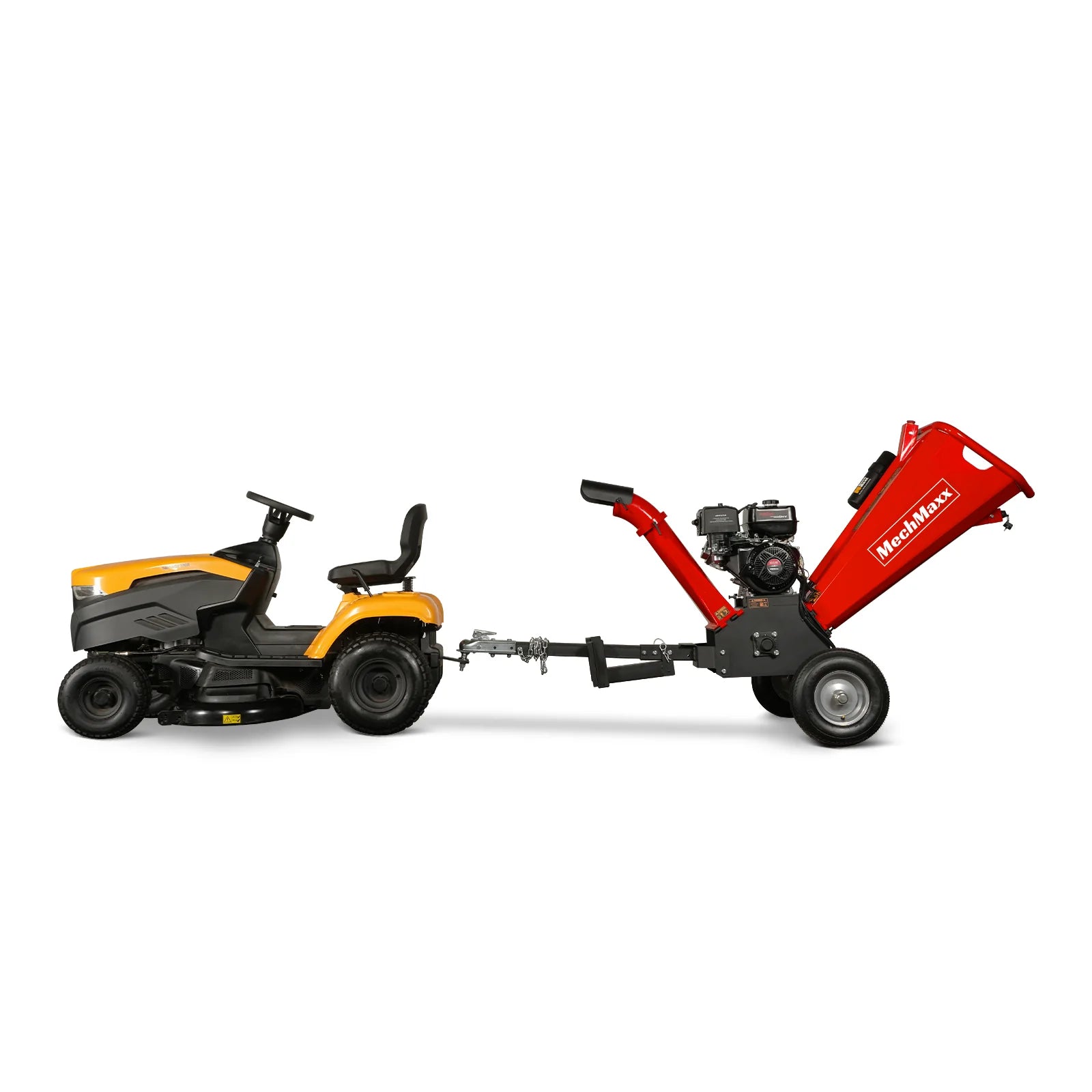

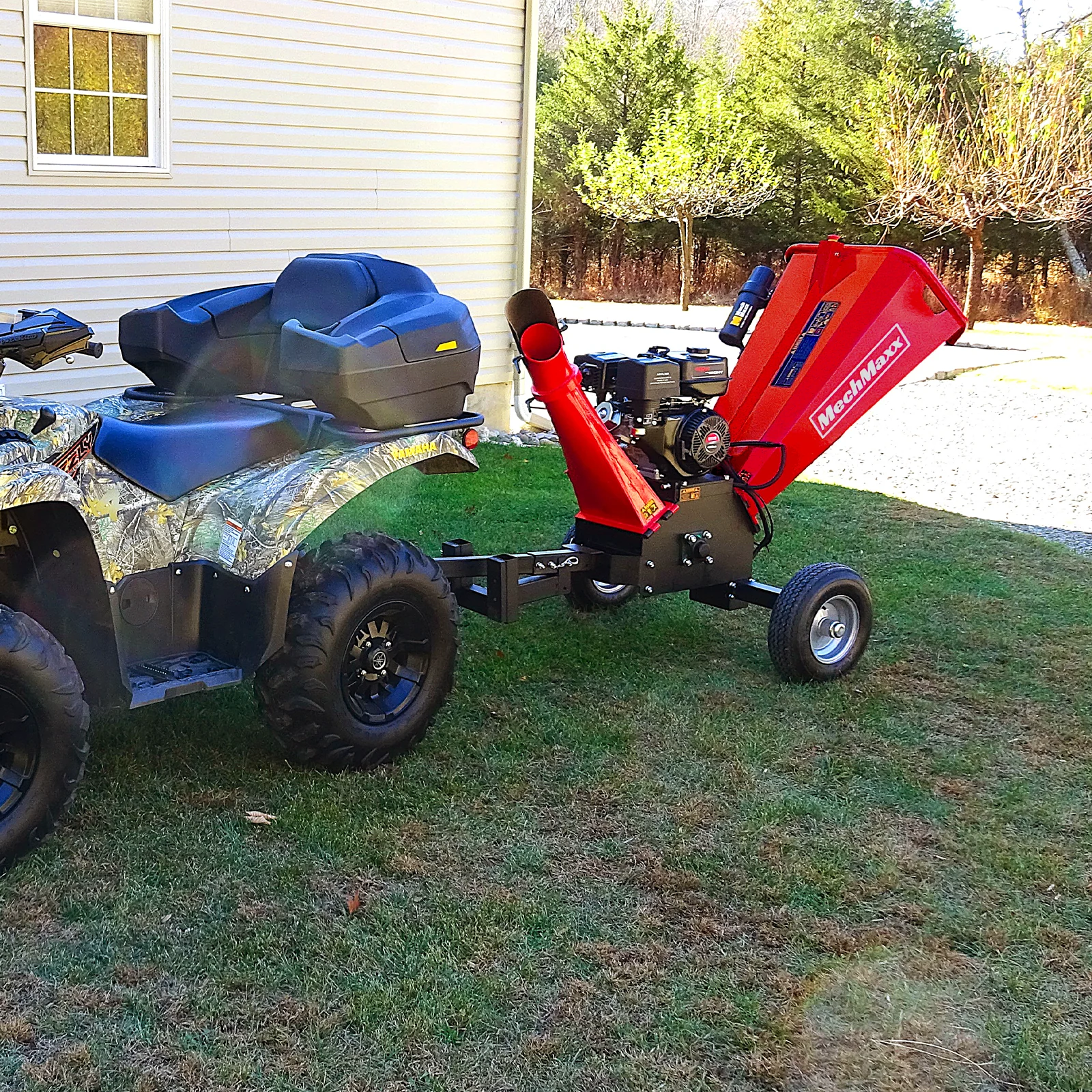

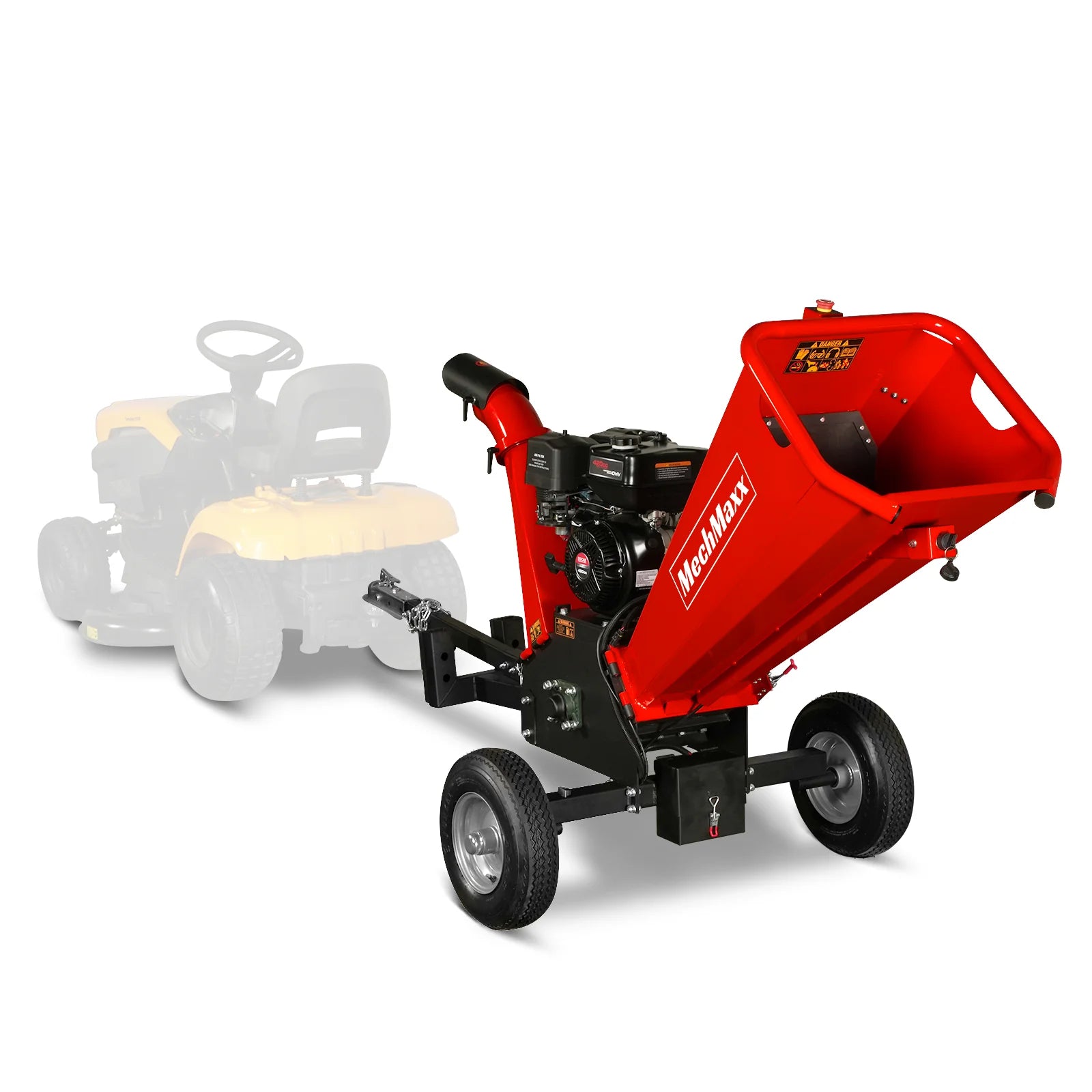

| Belt | 2 x V-Belts | Towing | Tow Bar With 2 in Coupler |

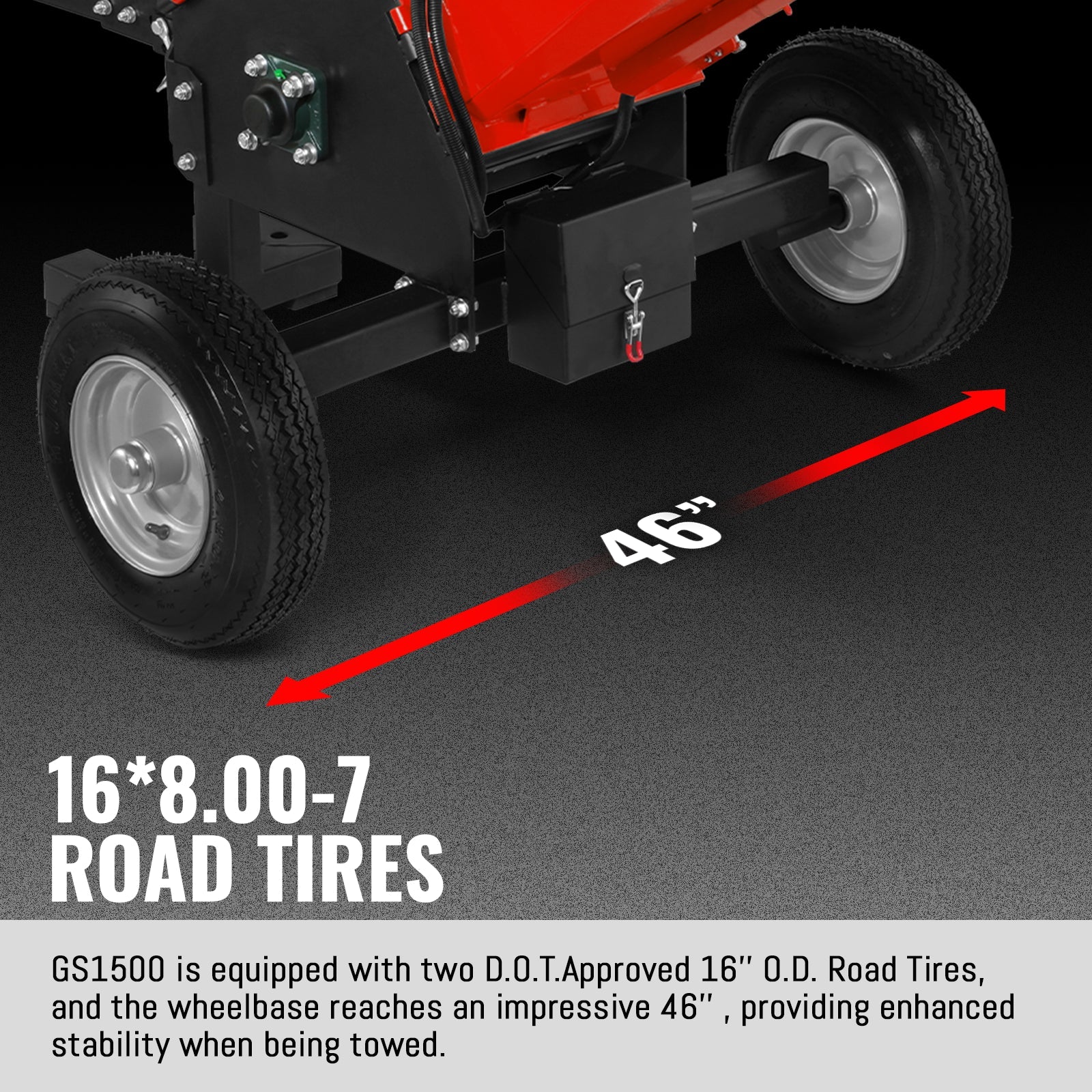

| Belts Material | Kevlar | Tire | 16 x 8.00-7 O.D. Road Tires |
| Clutch | Centrifugal Clutch | Wheelbase | 46 in |
| Cutting Method | Drum | Package Method | Plywood Case |

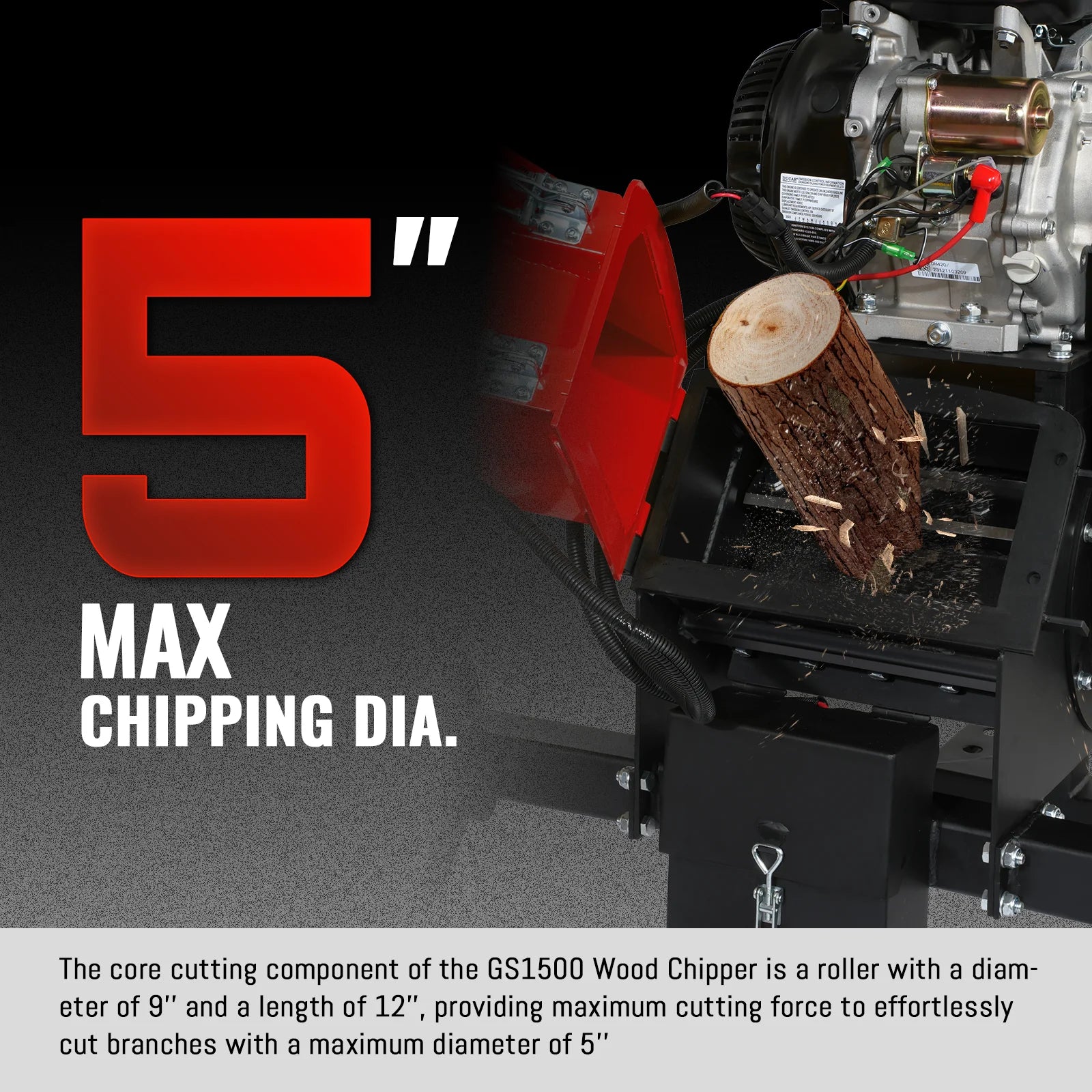

| Chipping Dia. | 5 in | Weight (N.W./G.W.) | 441 / 498 lbs |

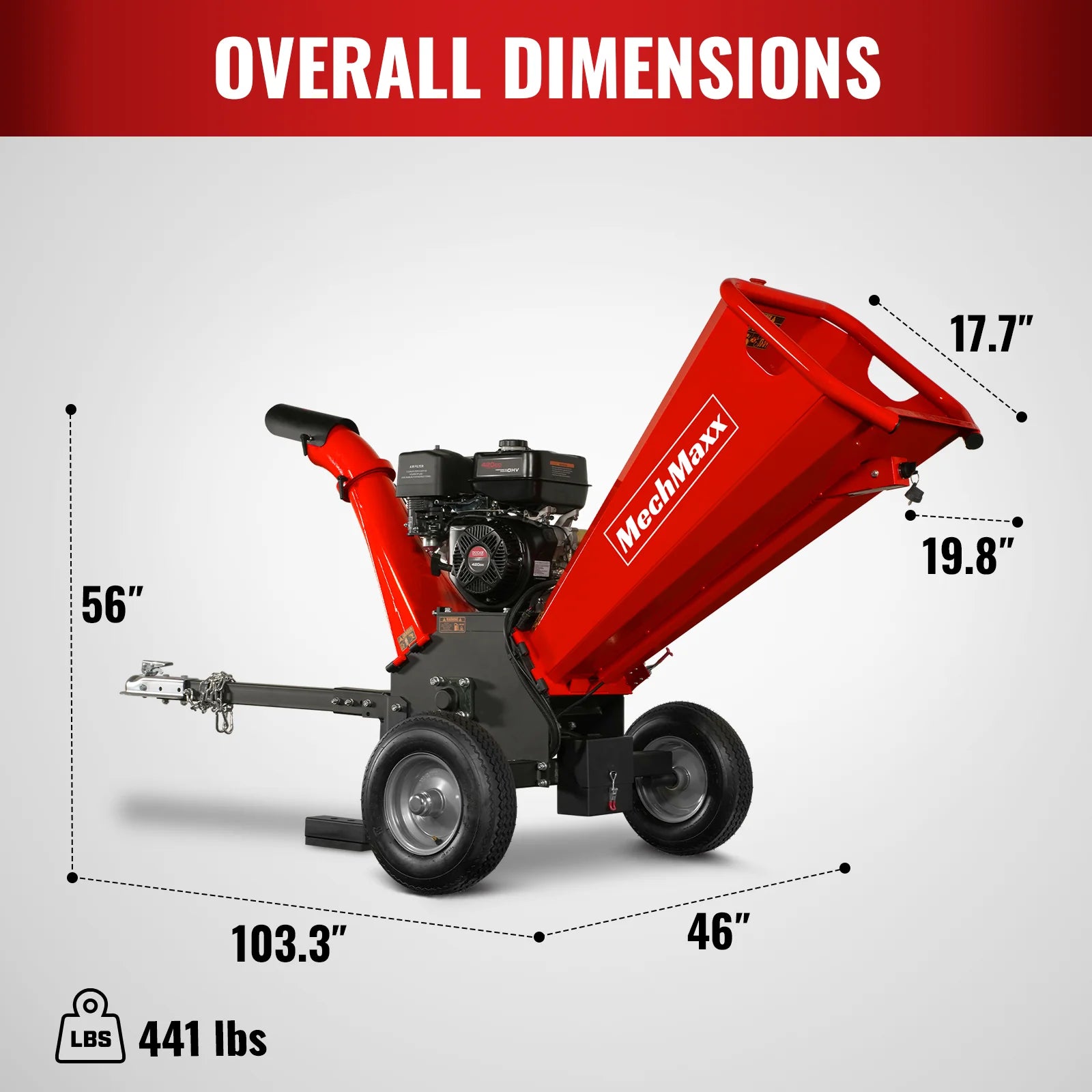

| Roller | 13.8 in | Product Size (L*W*H) | 102x46x56 in |
| Reduction Ratio | 20:1 | Packing Size (L*W*H) | 36x31x49 in |

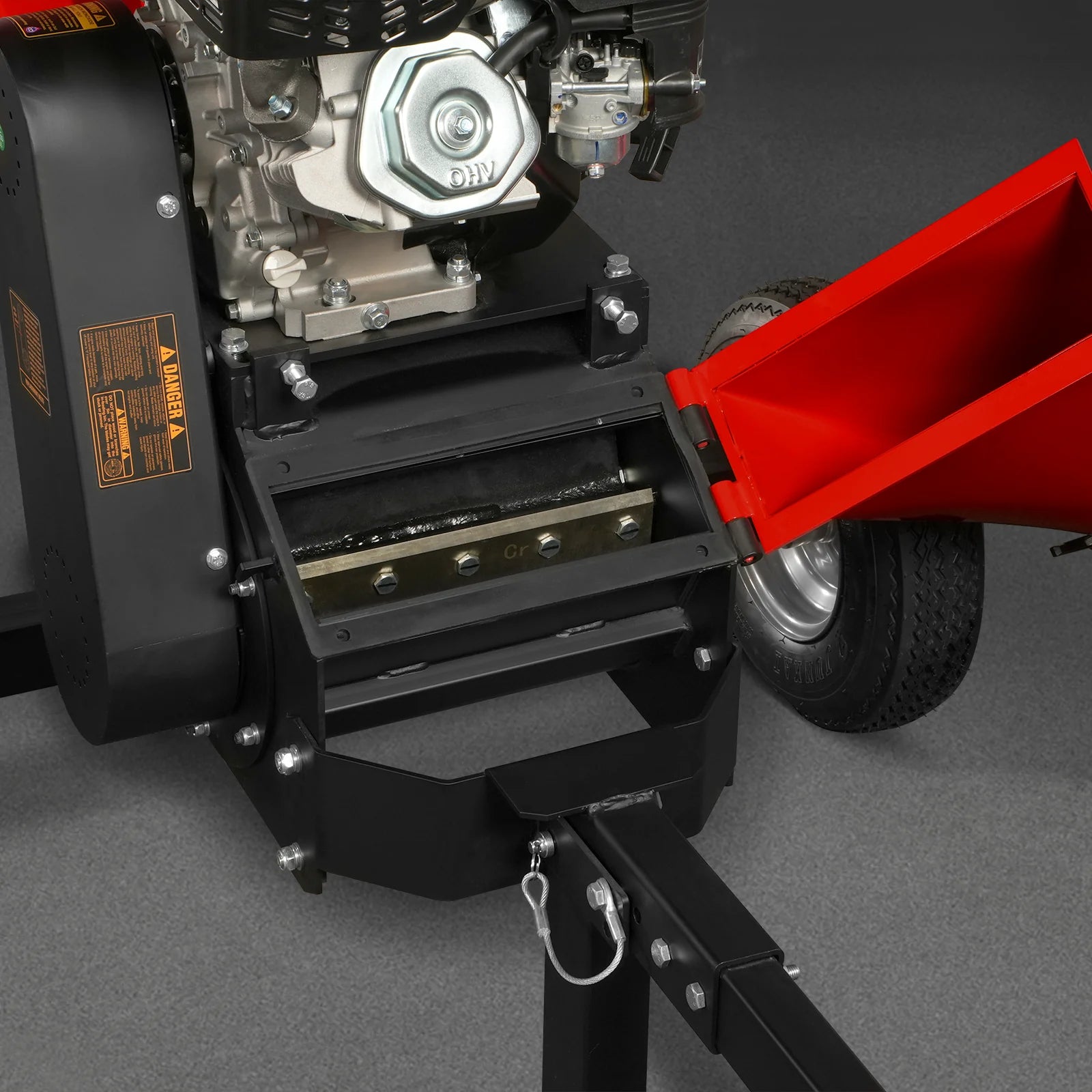

| Knives Nos. | 2 x Blade; 1 x Anvil | Machine Warranty | 2 Years |
| Knives Material | A8 (5Cr8MoVSi ) | Engine Warranty | 2 Years |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
