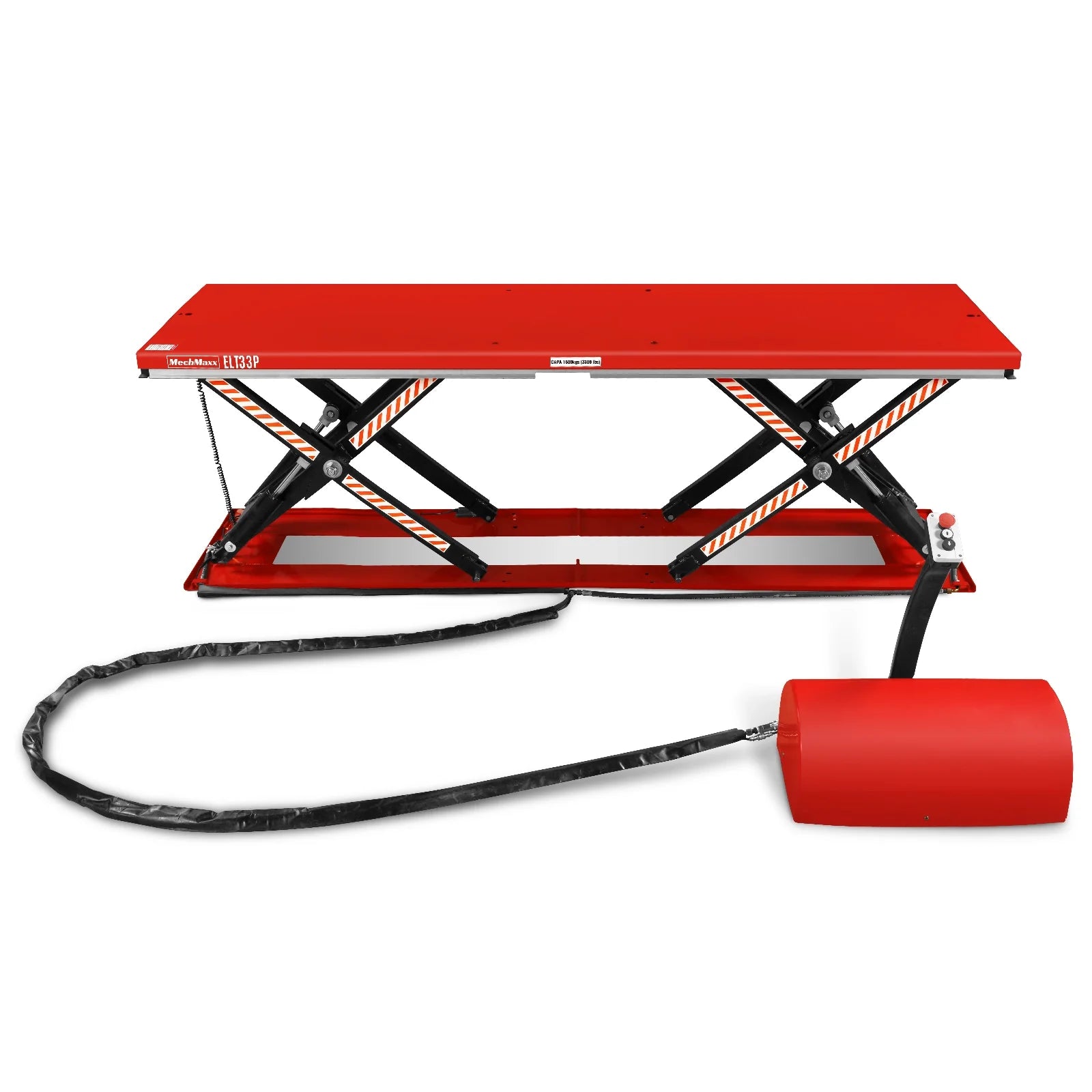

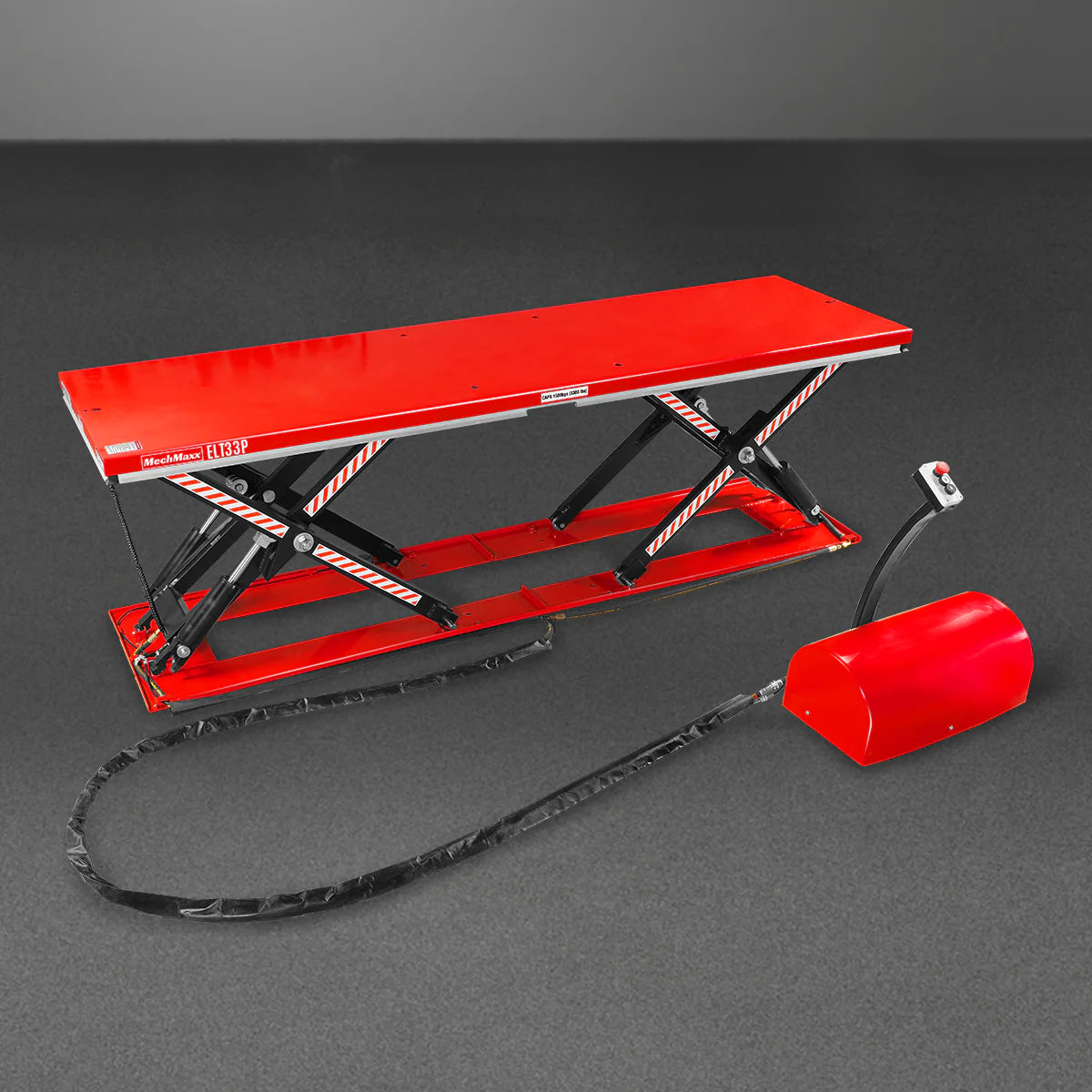

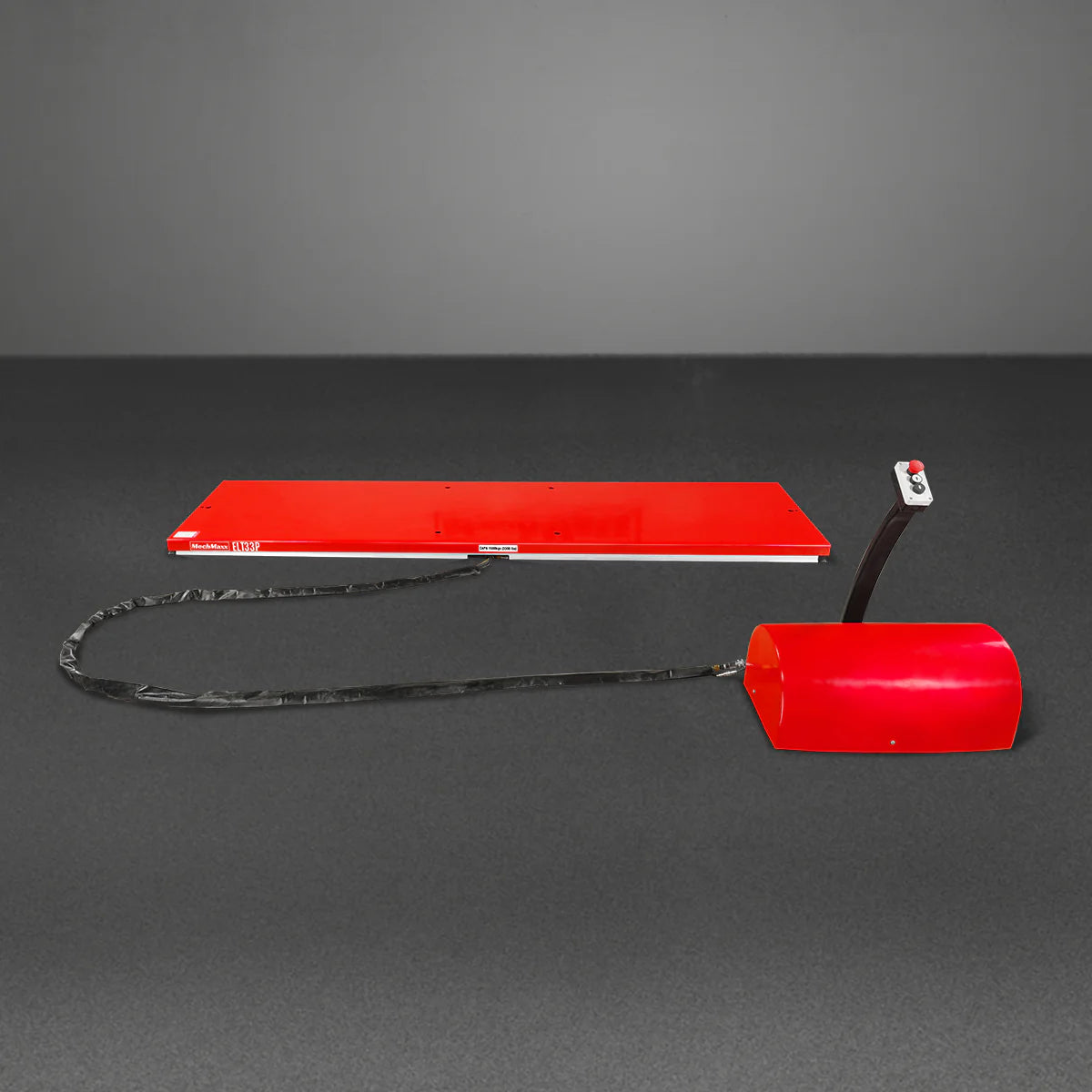

| Model | ELT33P |
| Voltage | 110V 60HZ 1PH |
| Weight Capacity | 3300LBS |

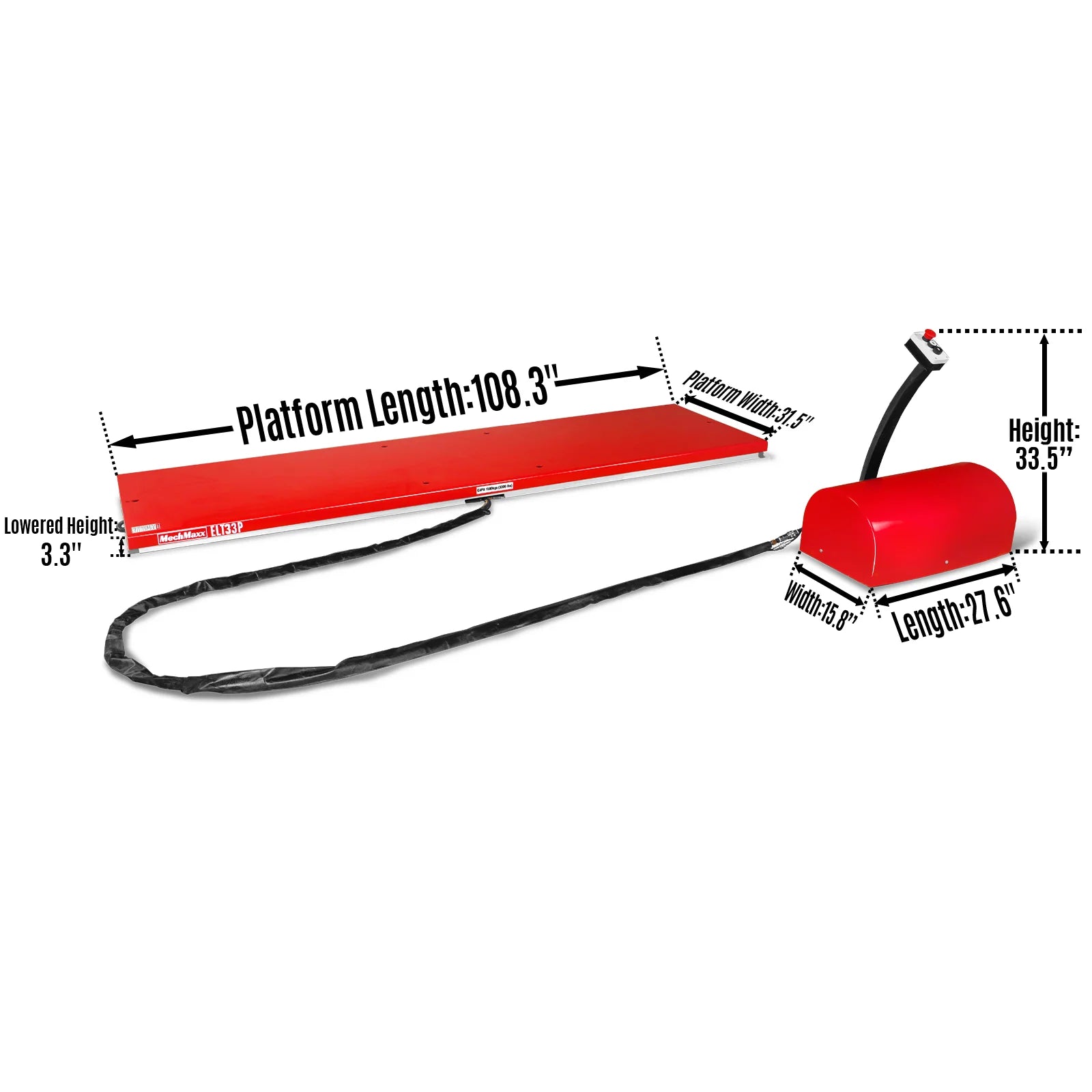

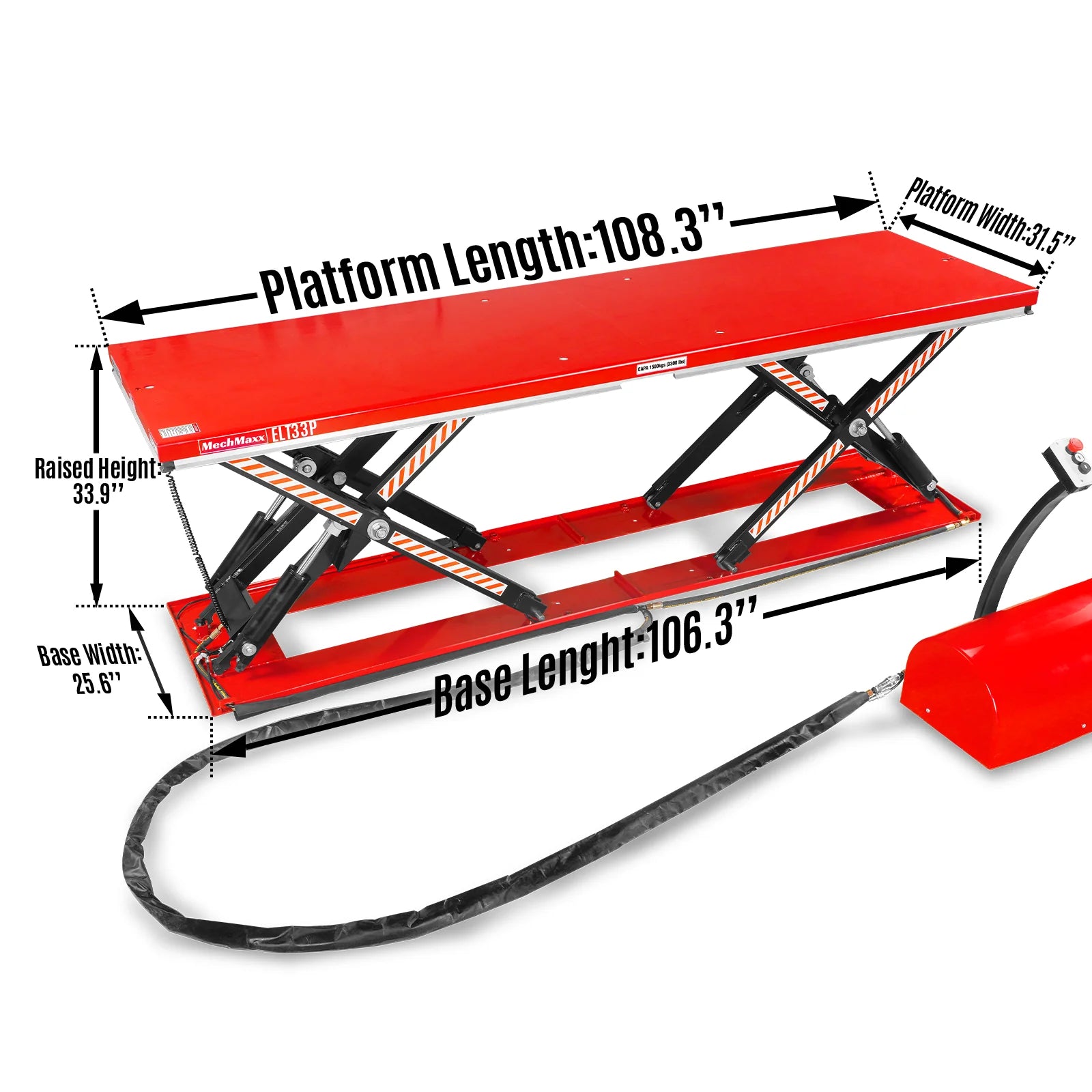

| Platform Size | 108.3″ x 31.5″ |
| Raised Height | 33.9″ |
| Lowered Height | 3.3″ |
| Base Size | 106.3″x25.6″ |

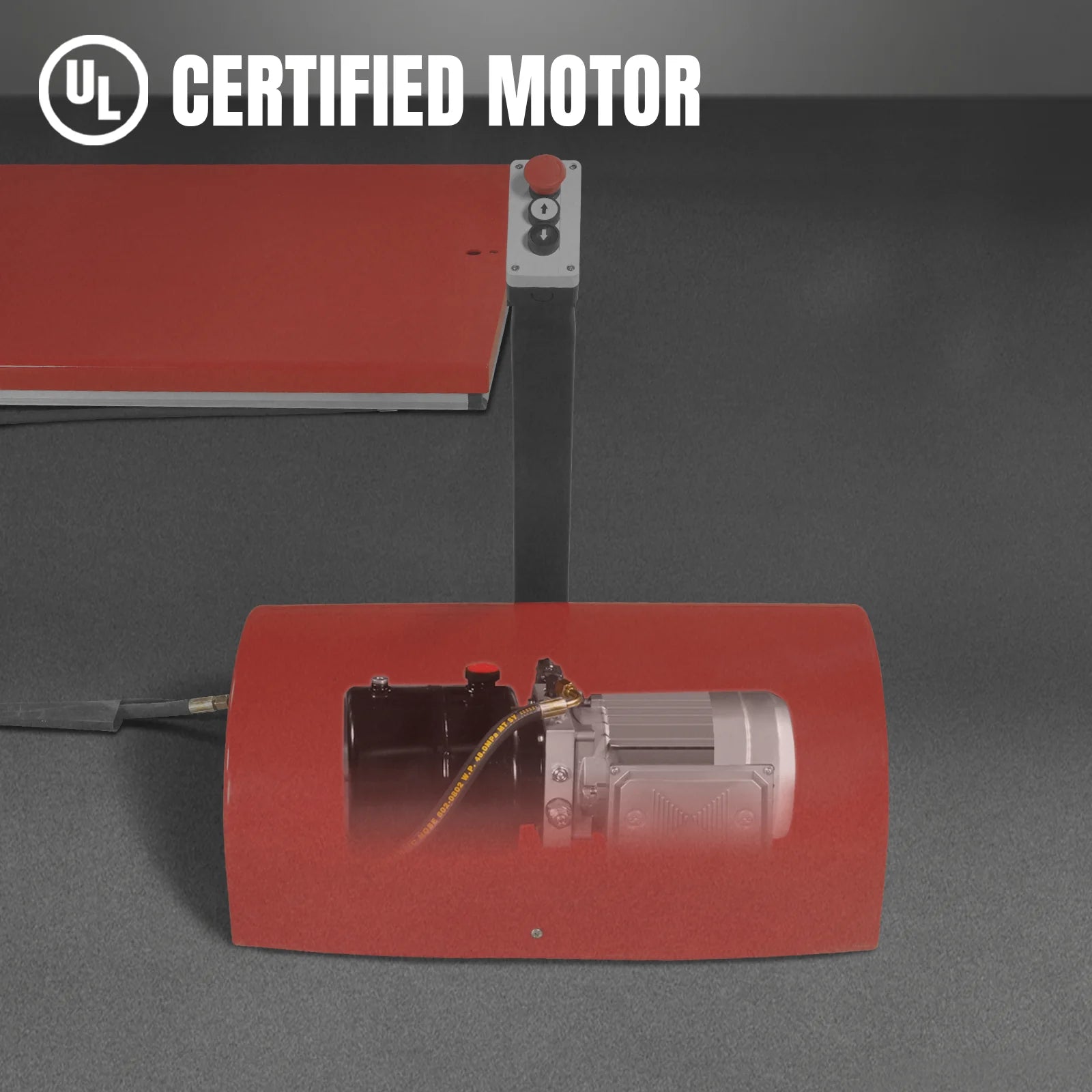

| Motor Horsepower | 3HP /2.2KW |
| Power Type | Electric-Hydraulic |

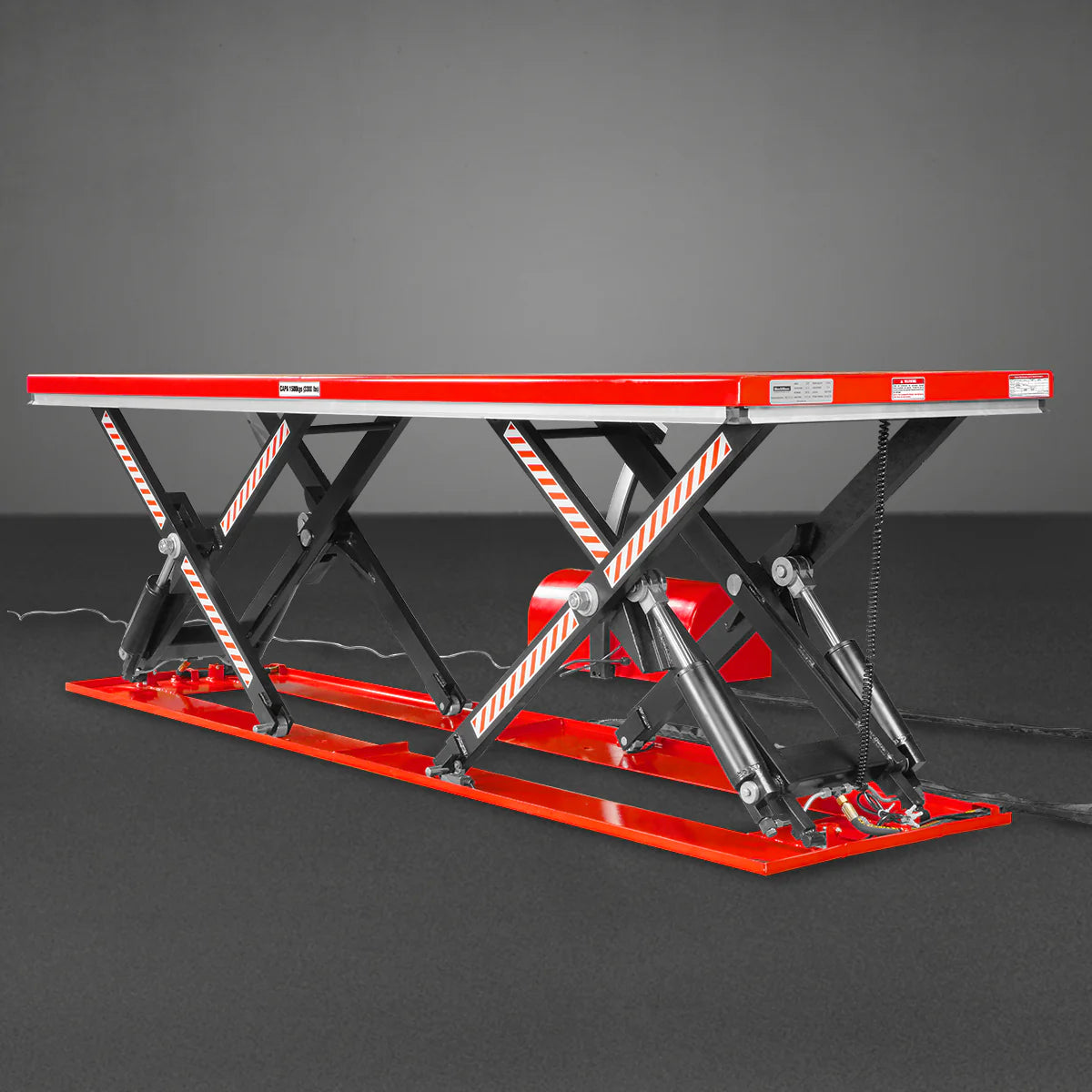

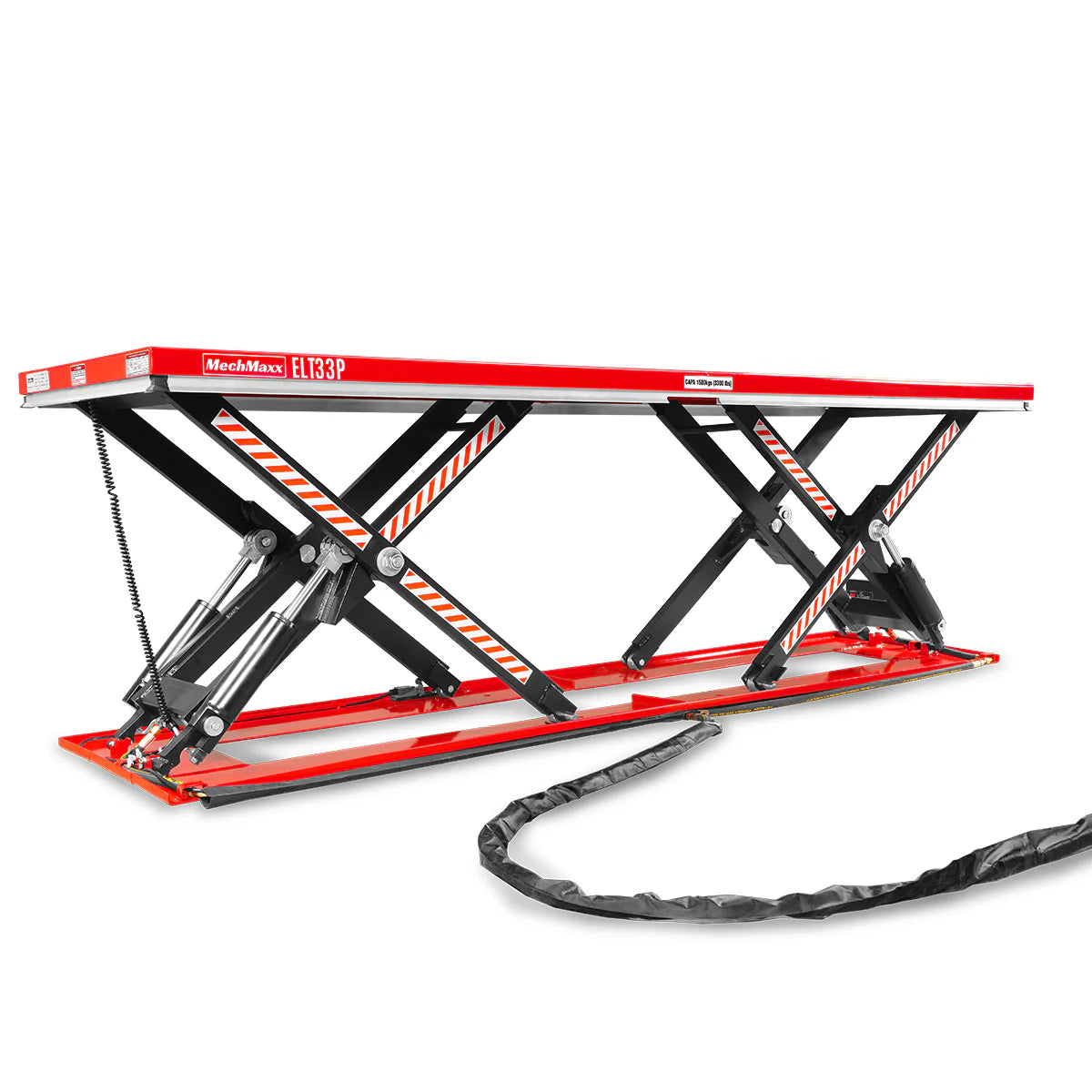

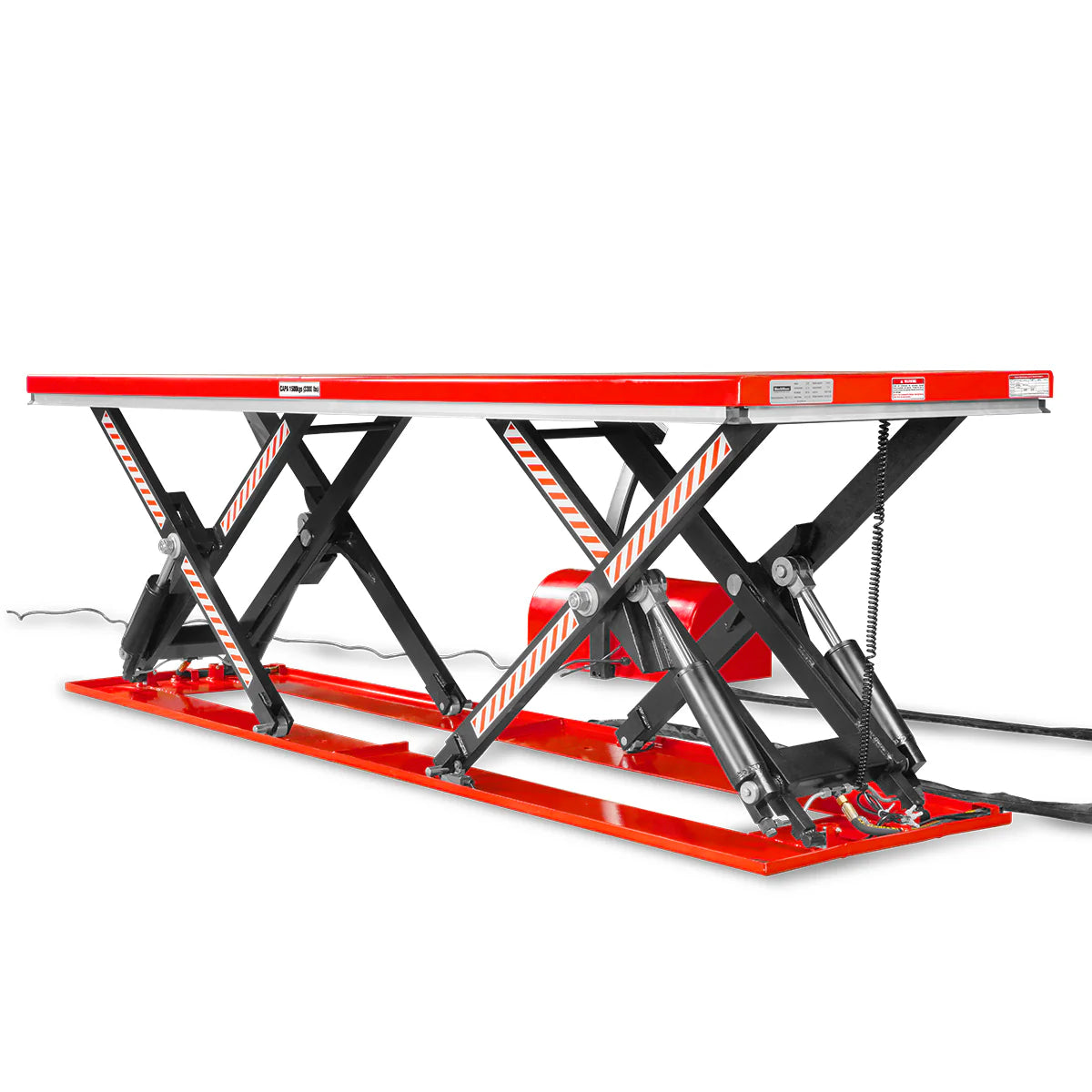

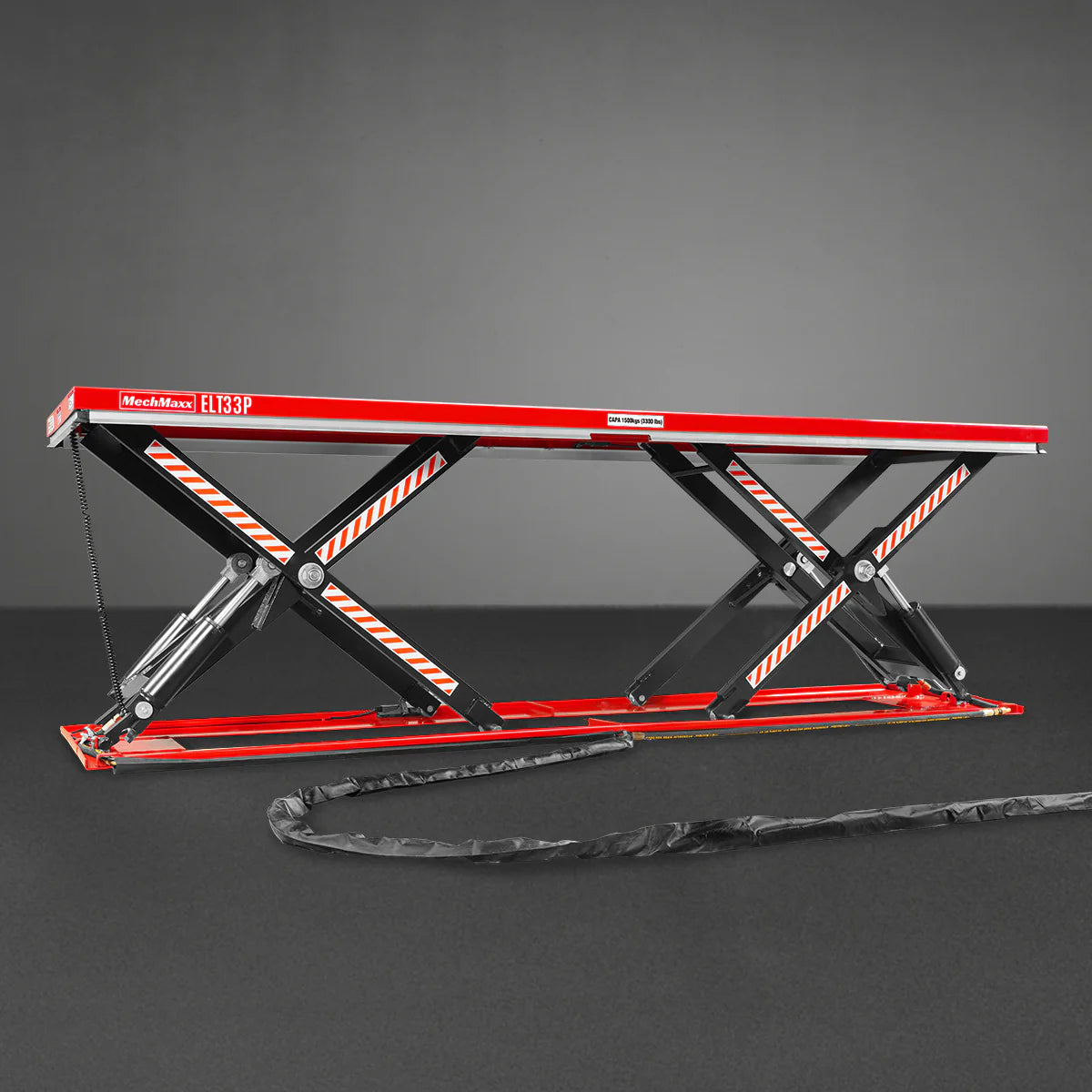

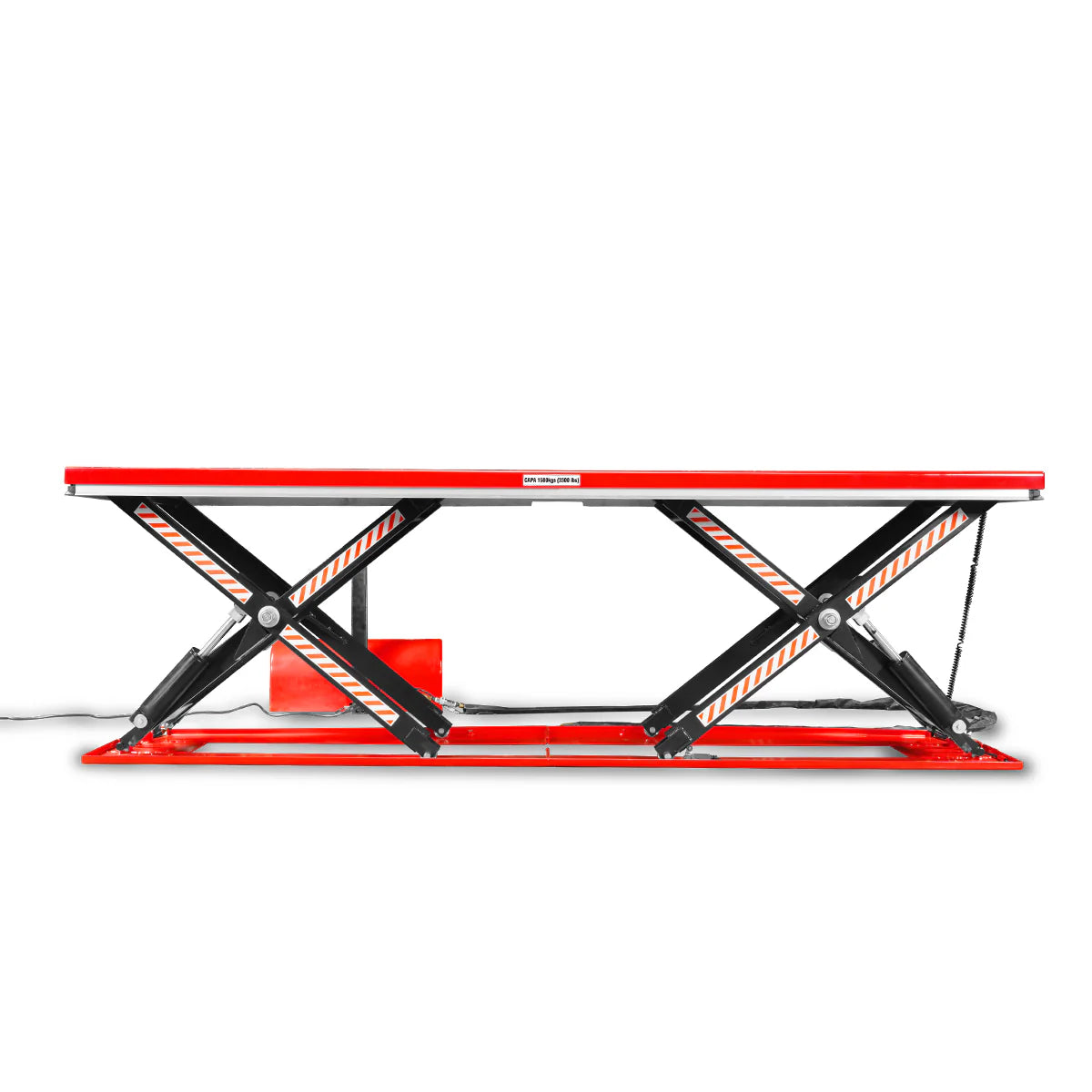

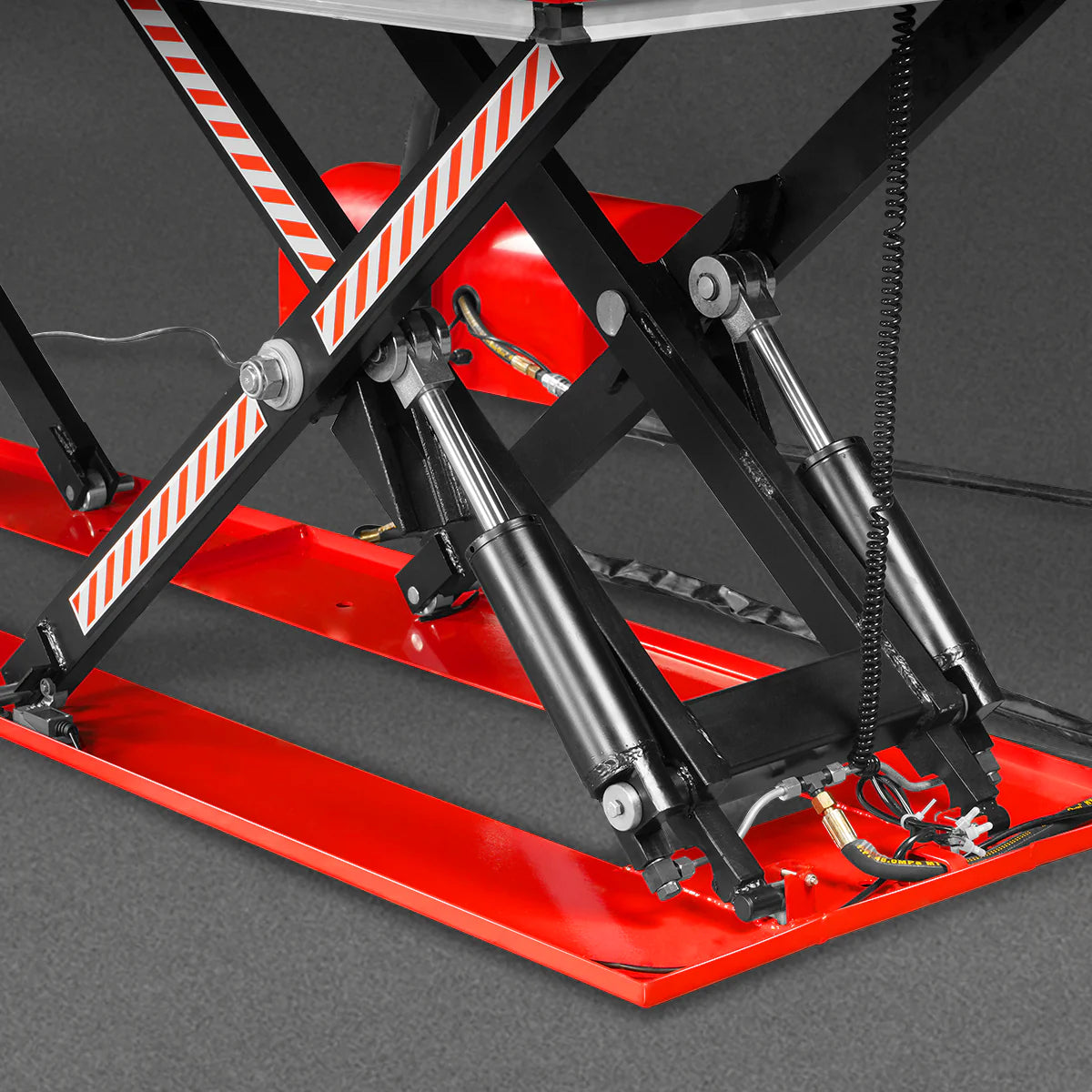

| Scissor Type | Double Parallel Scissor Lift |

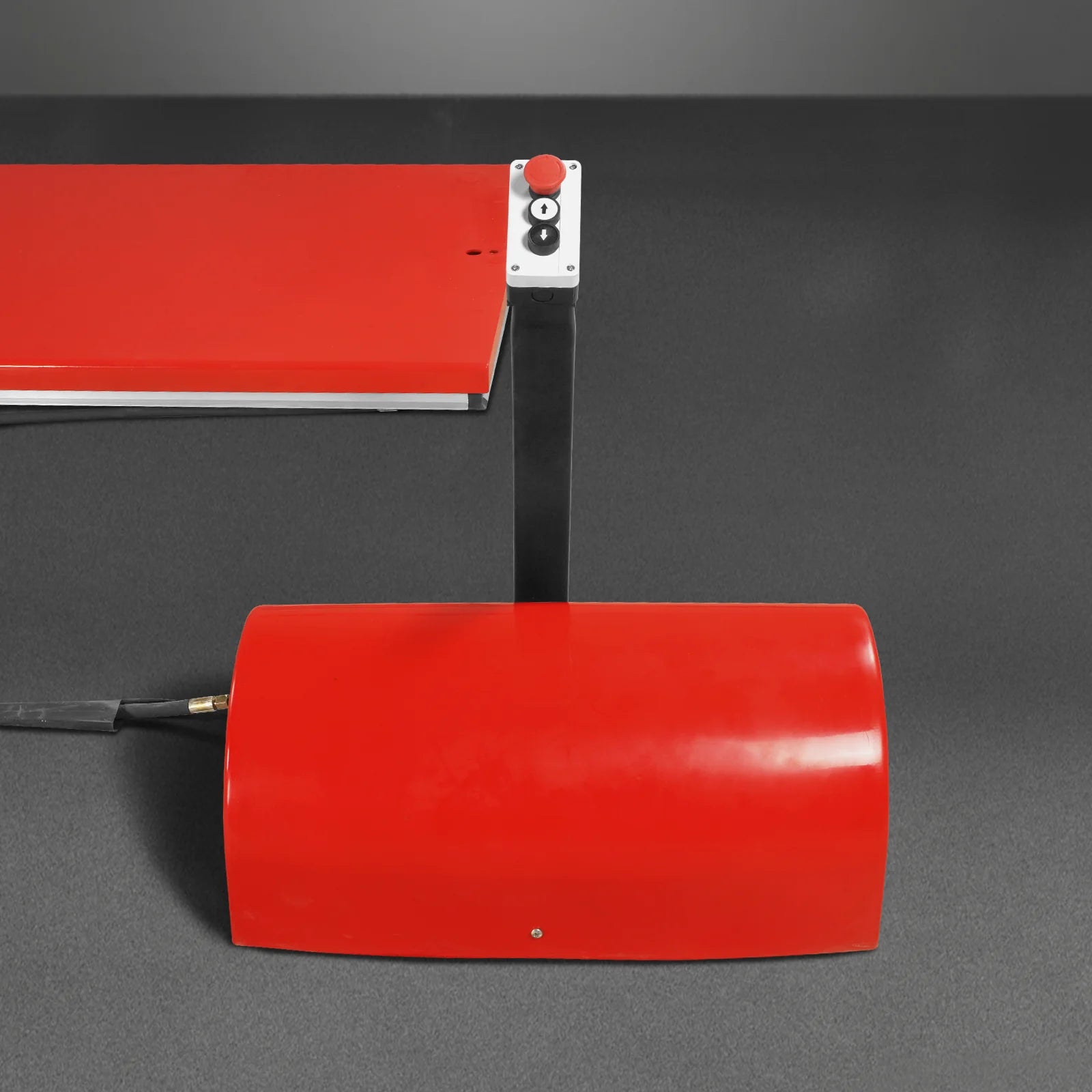

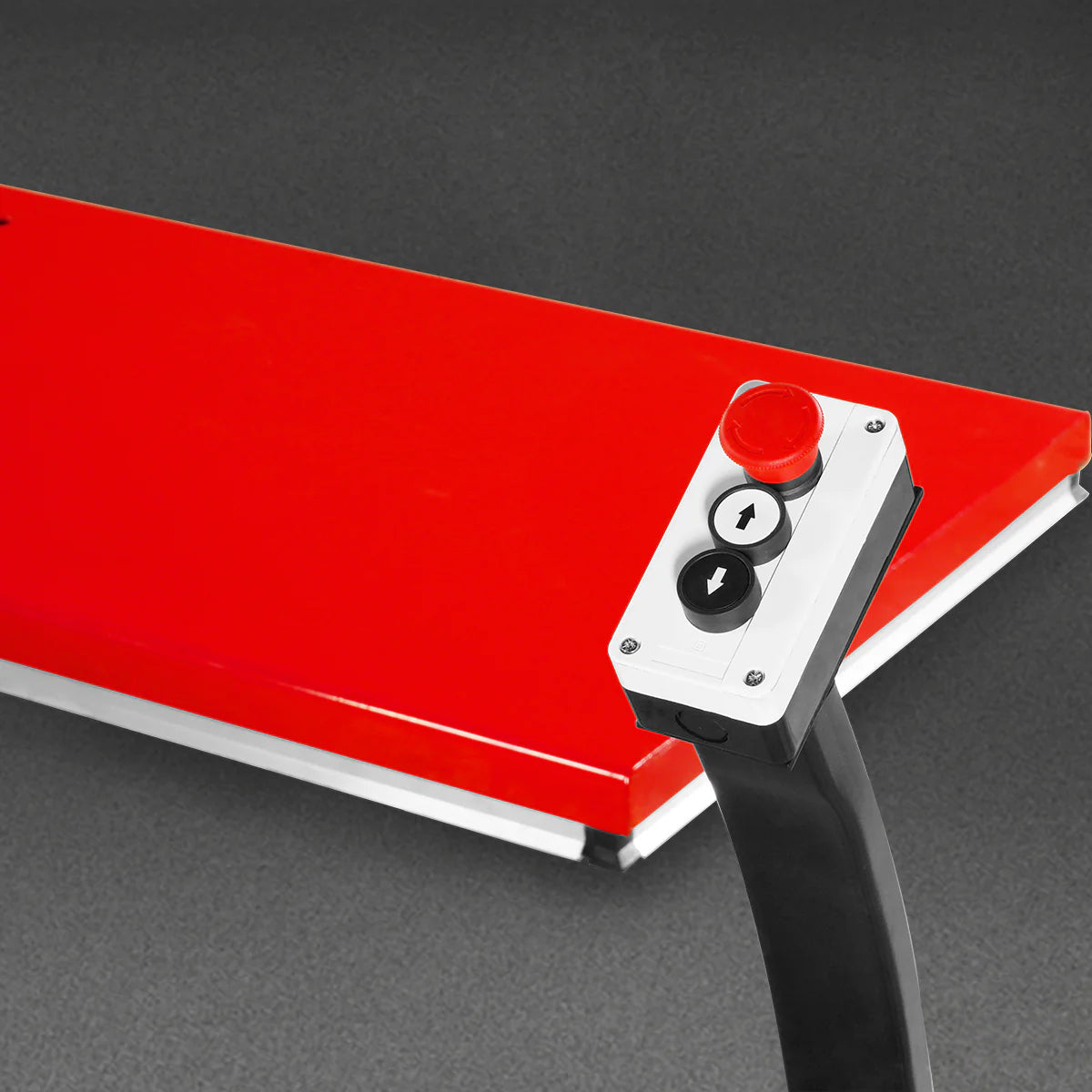

| Lift Control | Hand Operated |
| Material | Steel |
| Wire Length | 16FT |
| Packing Size: | 109″ x 32″ x 8″(Box A) 33″ x 18″ x 18″(Box B) |
| N.W.:/ G.W.: | 1028/1338 LBS(Box A) 71/95 LBS(Box B) |
WARNlNG: This product can expose you to chemicals including engine exhaust (including diesel engine exhaust when equipped),lead and lead compounds, mineral oils, soots, phthalates, and carbon monoxide which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.
Certain specification(s) are based on engineering calculations and are not actual measurements. Specification(s) are provided for comparison purposes only and are subject to change without notice. Specification(s) for your individual equipment will vary based on normal variations in design, manufacturing, operating conditions, and other factors.
